Crankshaft Position (CKP) Sensor
Crankshaft Position (CKP) Sensor

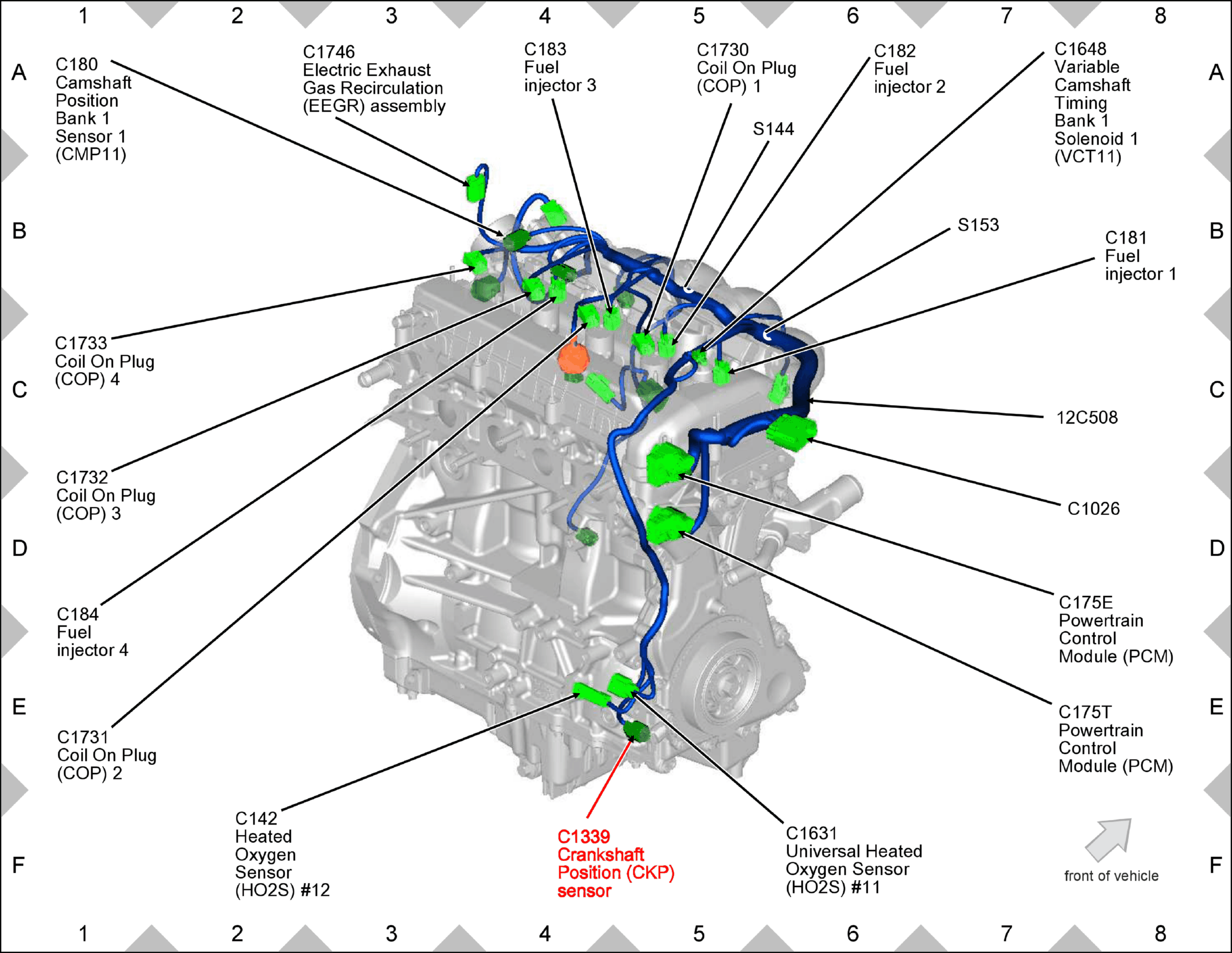

Fig 1: Crankshaft Position (CKP) sensor Component Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
