Console Front Center Ambient LED (Fusion)

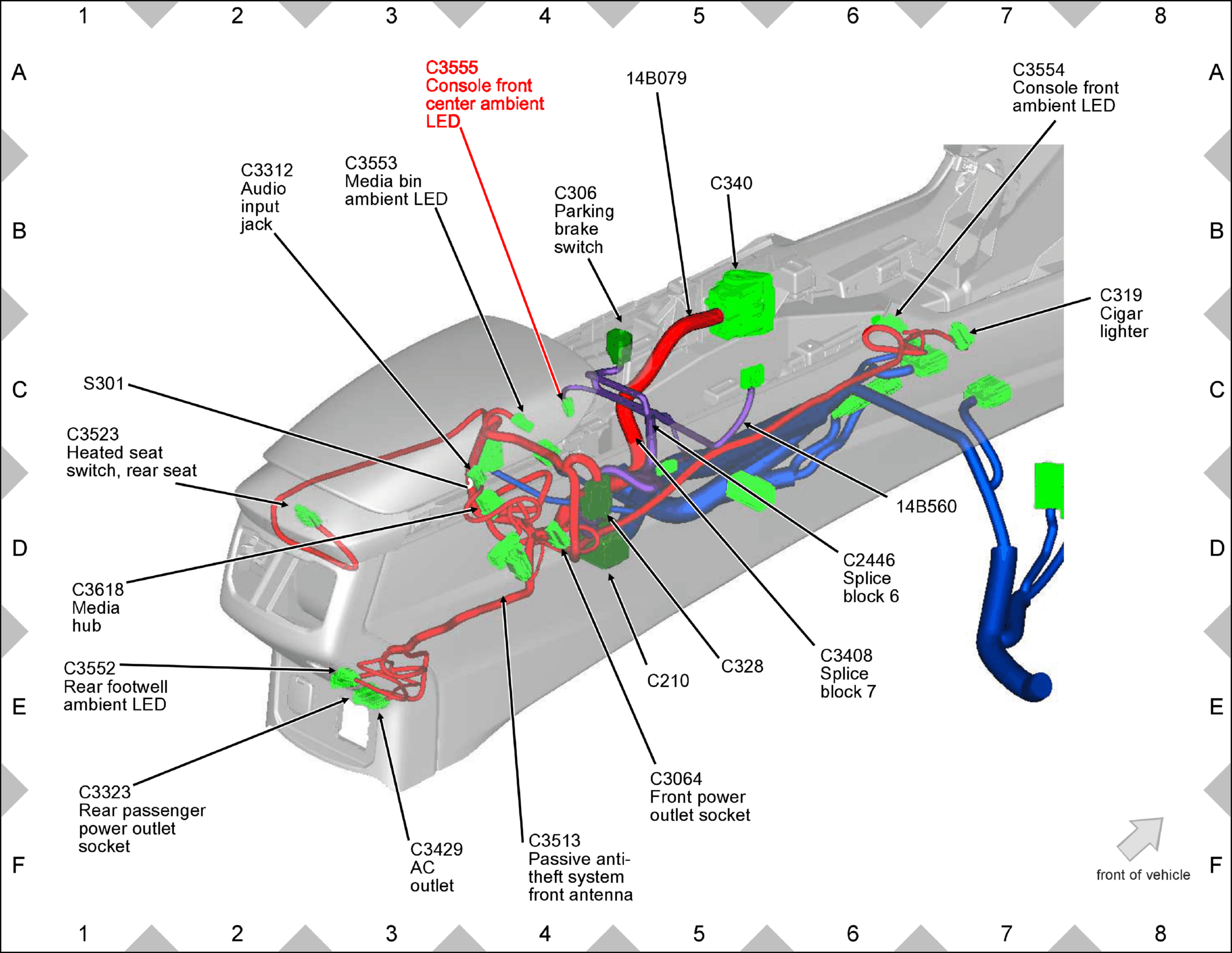

Fig 1: Console Front Center Ambient LED (Fusion) Component Location

GFDW51625

Courtesy of FORD MOTOR COMPANY
