Component Location Charts: Clockspring

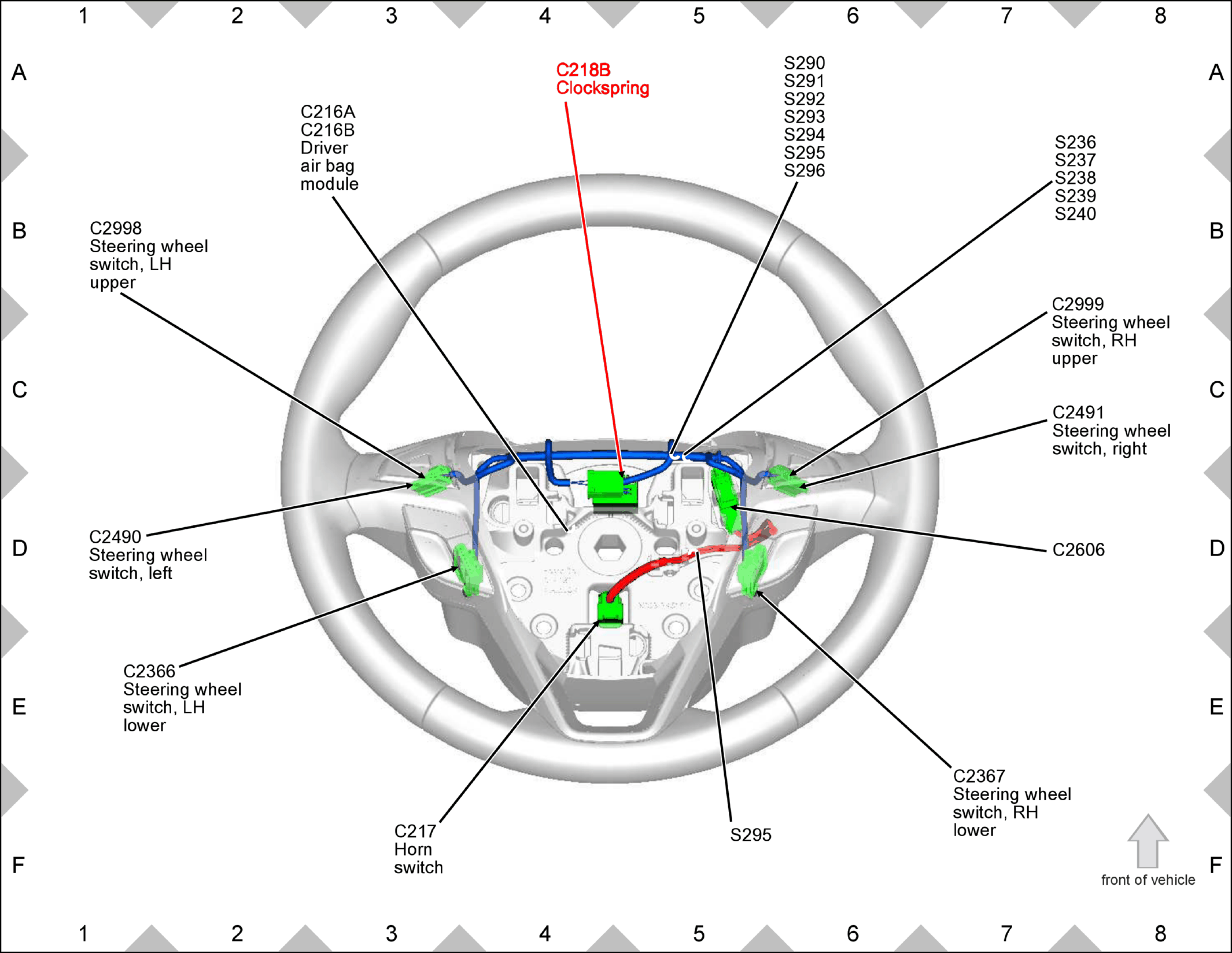

Fig 1: Clockspring Component Location

GFDW51618

Courtesy of FORD MOTOR COMPANY
