Component Location Charts: Battery

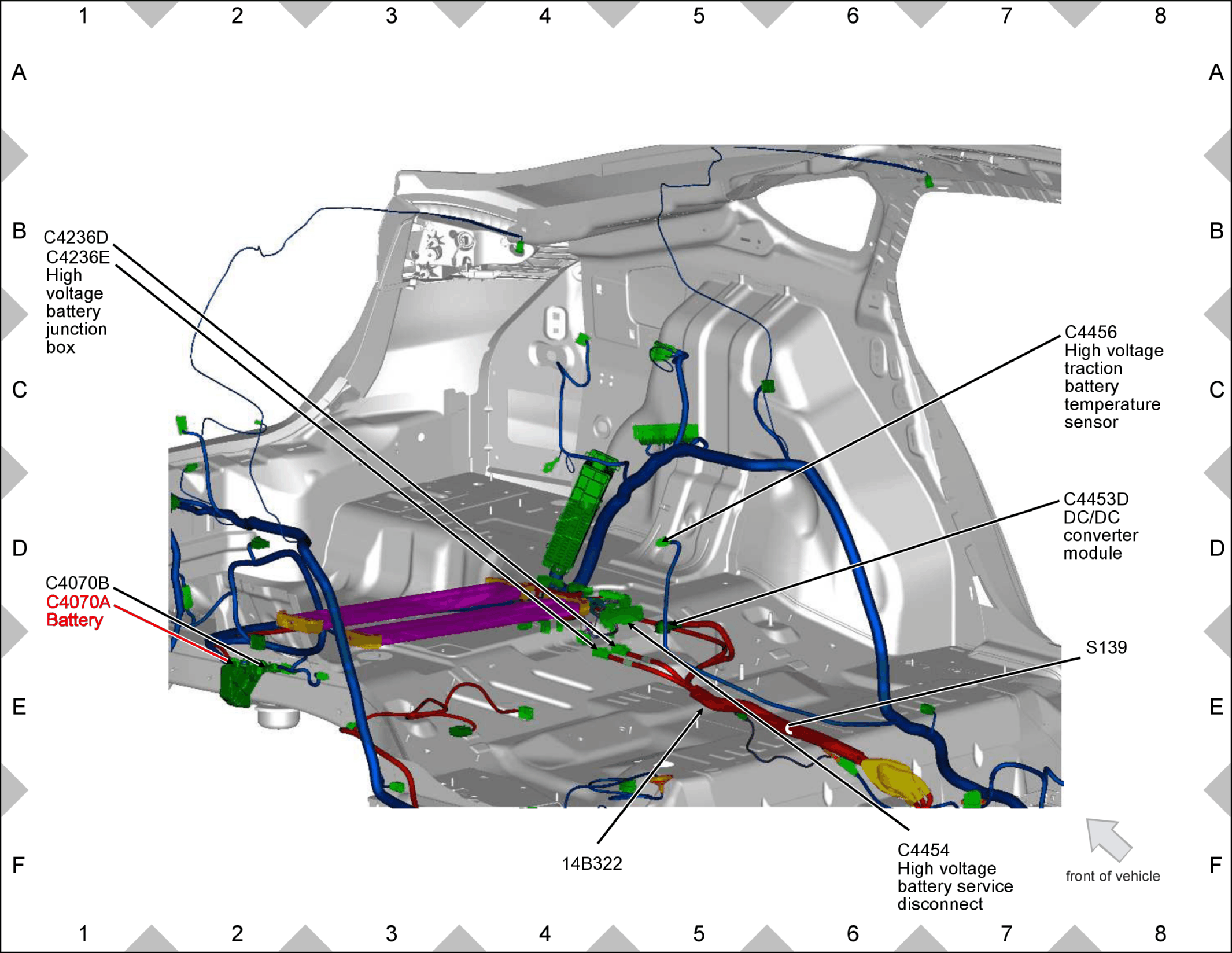

Fig 1: Battery Component Location

GFDW51595

Courtesy of FORD MOTOR COMPANY
