OEM Component Harness Location Charts (Hybrid/ENERGI)
>>
Component Location Charts
>>
Battery Fuse Assembly
Battery Fuse Assembly

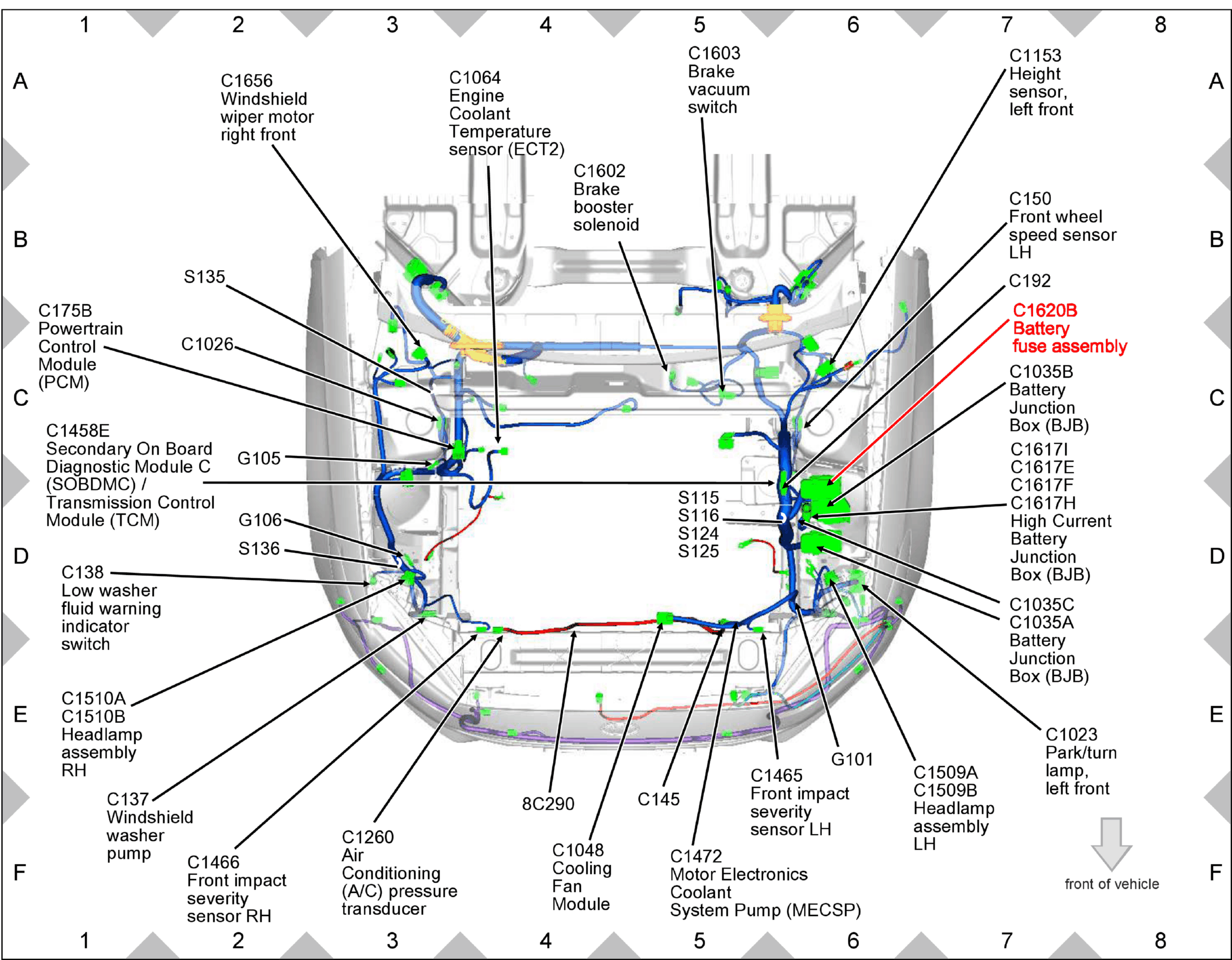

Fig 1: Battery Fuse Assembly Component Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
