Ambient Air Temperature (AAT) Sensor

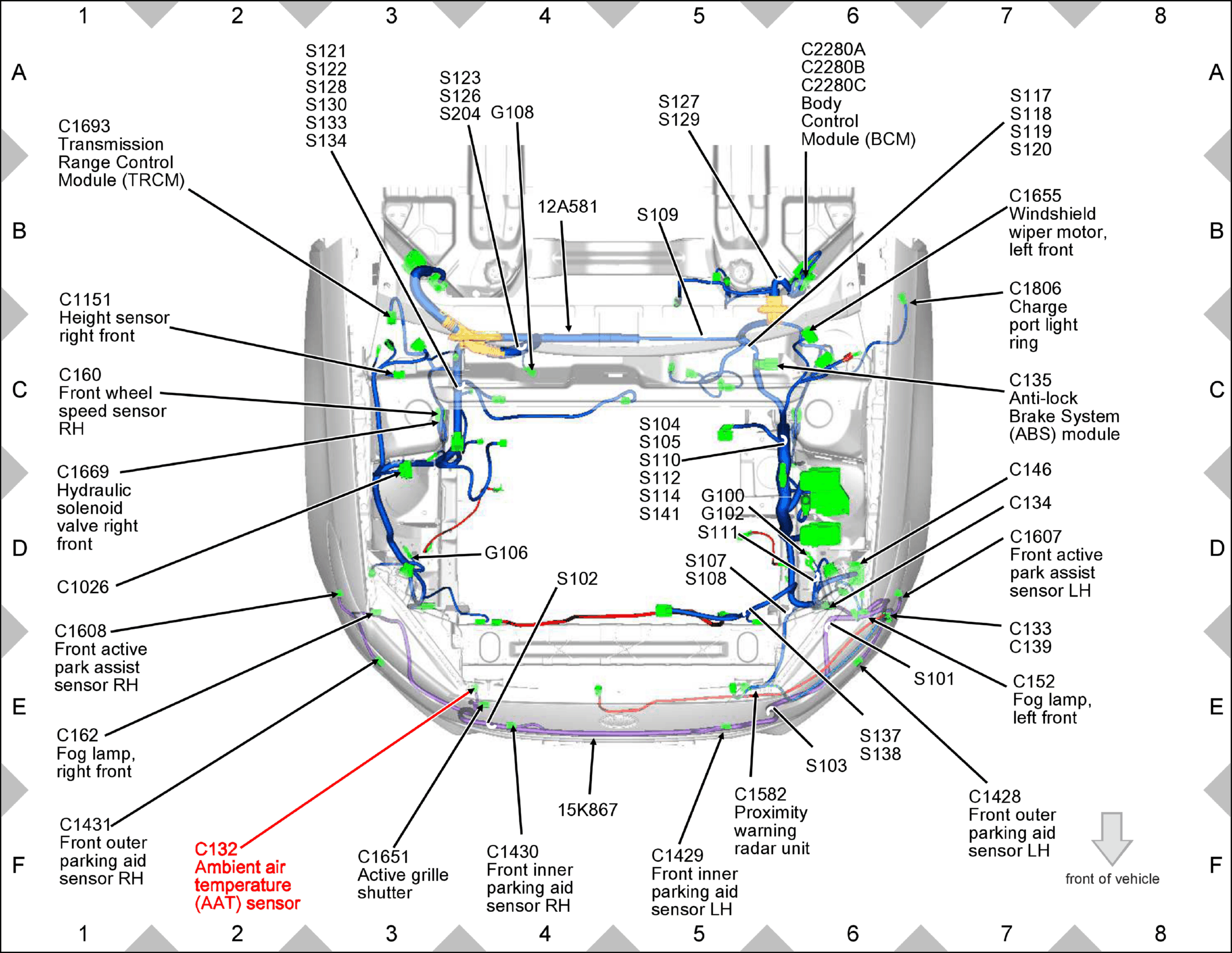

Fig 1: Ambient Air Temperature (AAT) Sensor Component Location

GFDW51585

Courtesy of FORD MOTOR COMPANY
