Roof Opening Panel Fixed Glass: Removal

WARNING: This page is about a different car, the 2016 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    Remove the roof opening panel frame. Refer to: Roof Opening Panel Frame .

  1. 2.

    NOTE: Position the roof opening panel frame upside down on a suitable workbench.

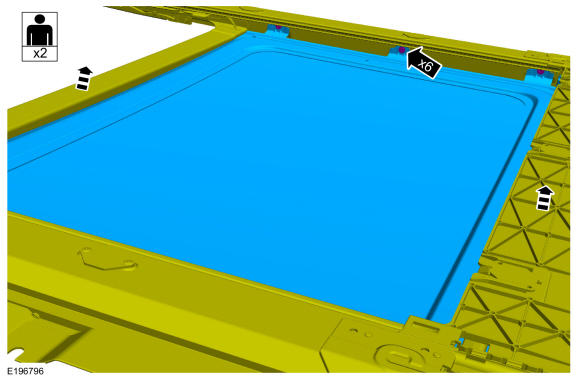

    Remove the roof opening panel fixed glass bolts and with the aid of an assistant, separate the frame from the glass.

    Torque: 35 lb.in (4 Nm)

GFD43398Courtesy of FORD MOTOR COMPANY
