Luggage Compartment Lid Moulding: Removal
WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.NOTE: Before beginning any service procedure in this service information, refer to Safety Warnings in the General Information article. Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions
- 2.

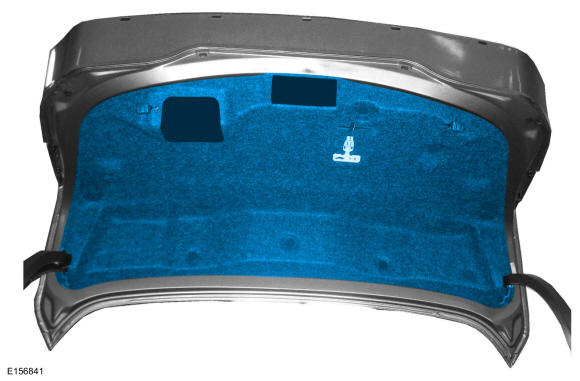

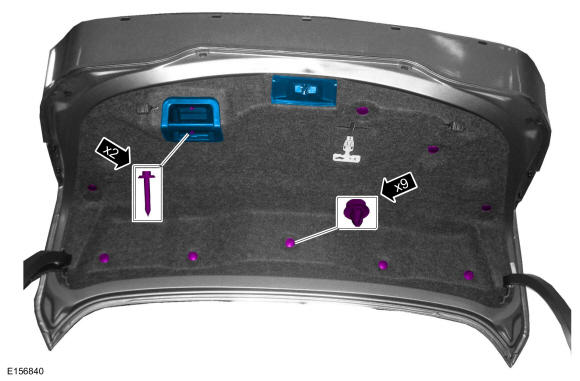

Remove the liftgate trim panel.- Remove the bolts and the liftgate assist handle.
- Release the tabs and remove the liftgate latch bezel.
- Release the clips.
- 4.
Remove the reversing lamp. Refer to: Reversing Lamp
- 6.NOTE: If equipped with parking aid camera.
If equipped. Disconnect the electrical connectors and position aside the wiring harness.
