Luggage Compartment Lid Moulding: Removal

WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

NOTE: Before beginning any service procedure in this article, refer to Health and Safety Precautions . Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions .

2.

Remove the liftgate trim panel.
- Remove the bolts and the liftgate assist handle.
- Release the tabs and remove the liftgate latch bezel.
- Release the clips.

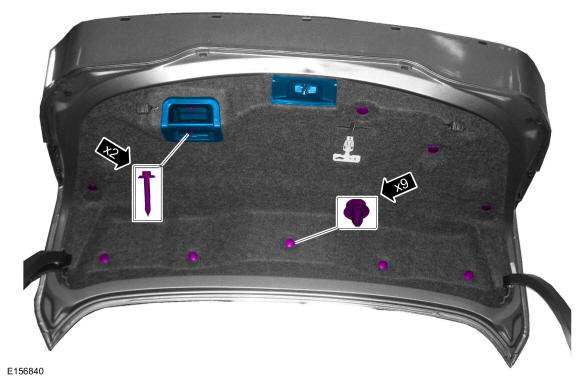

GFD69483

Courtesy of FORD MOTOR COMPANY

3.

Remove the liftgate trim panel.

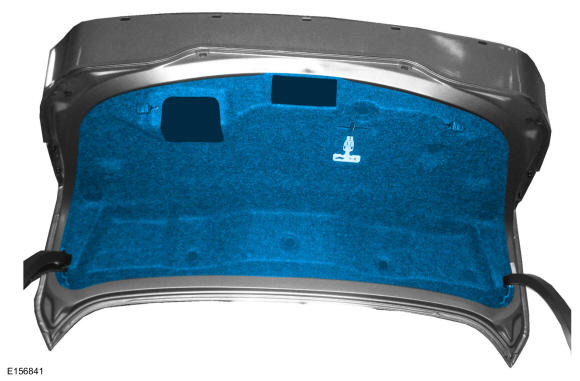

GFD69484

Courtesy of FORD MOTOR COMPANY

4.

Remove the reversing lamp. Refer to: Reversing Lamp .

5.

Disconnect the electrical connector and position aside the wiring harness.

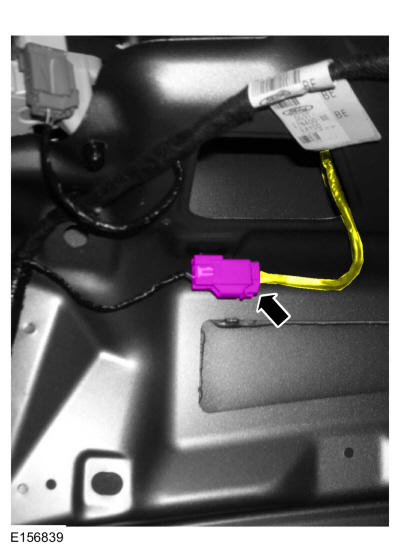

GFD69485

Courtesy of FORD MOTOR COMPANY

6.

NOTE: If equipped with parking aid camera.

If equipped. Disconnect the electrical connectors and position aside the wiring harness.

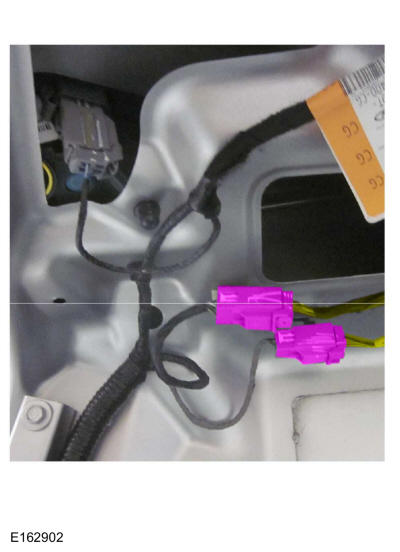

GFD69486

Courtesy of FORD MOTOR COMPANY

7.

Remove the nuts and release the clips.
Torque: 36 lb.in (4.1 Nm)

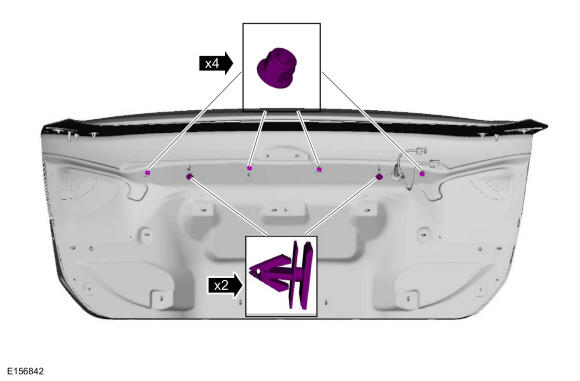

GFD69487

Courtesy of FORD MOTOR COMPANY

8.

Release the clips and remove the upper liftgate moulding.

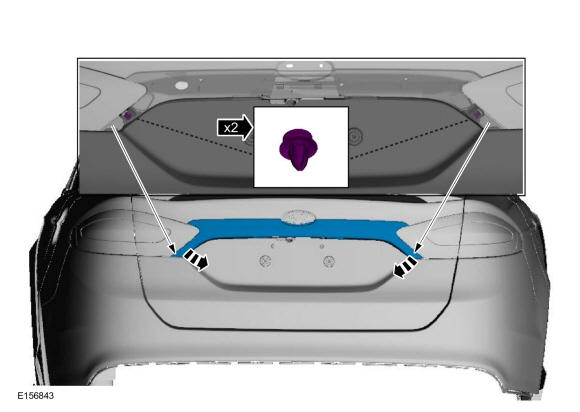

GFD69488

Courtesy of FORD MOTOR COMPANY

9.

Remove the bolts and release the clips.
Torque: 19 lb.in (2.1 Nm)

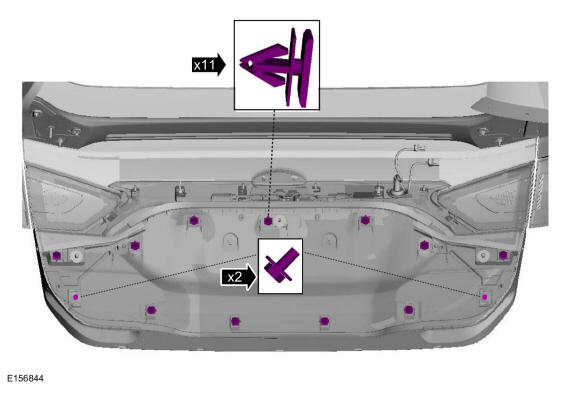

GFD69489

Courtesy of FORD MOTOR COMPANY

10.

Remove the lower liftgate moulding.

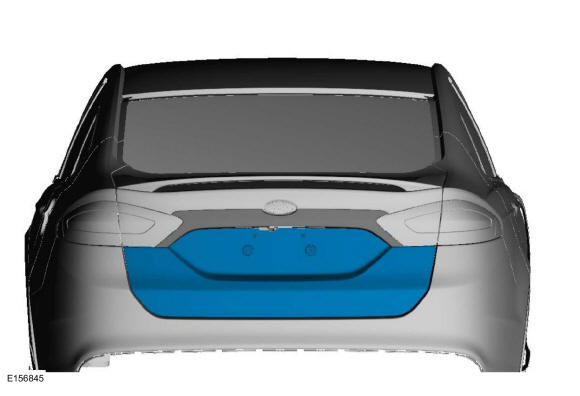

GFD69490

Courtesy of FORD MOTOR COMPANY
