Connector End View (C341C) - DRIVER SEAT MODULE (DSM)

WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

Description

DRIVER SEAT MODULE (DSM)

Color

Harness

14D231

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	*	*	Not Used
3	*	*	Not Used
4	RPP07 (YE-GN)	20	CTRL MOD. - SENSOR ADJUSTABLE STEERING COLUMN TELESCOPE (FORWARD/REARWARD) -
5	CPP18 (BN-VT)	20	CTRL MOD. - SOLENOID RAKE (TILT)
6	*	*	Not Used
7	*	*	Not Used
8	*	*	Not Used
9	*	*	Not Used
10	CPP04 (GY-OG)	18	CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TILT
11	CPP22 (GY-BN)	18	CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TELESCOPE FORWARD
12	*	*	Not Used
13	*	*	Not Used
14	*	*	Not Used
15	RPP06 (GN)	20	CTRL MOD. - SENSOR ADJUSTABLE PEDAL -
16	*	*	Not Used
17	*	*	Not Used
18	*	*	Not Used
19	*	*	Not Used
20	*	*	Not Used
21	*	*	Not Used
22	CPP23 (VT-GN)	18	CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TILT
23	CPP03 (GN-VT)	18	CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TELESCOPE REARWARD
24	*	*	Not Used

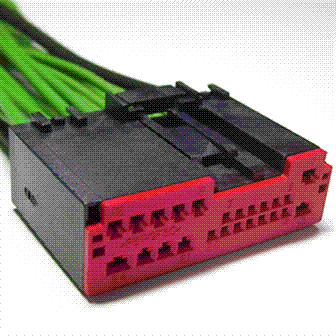

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1126

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-ATA

Gauge:

12 16 18

Pin material:

Tin & Silver

Cavities:

Vehicle Uses

Module - Driver Door

Module - Seat Memory

Module - Tire Pressure
