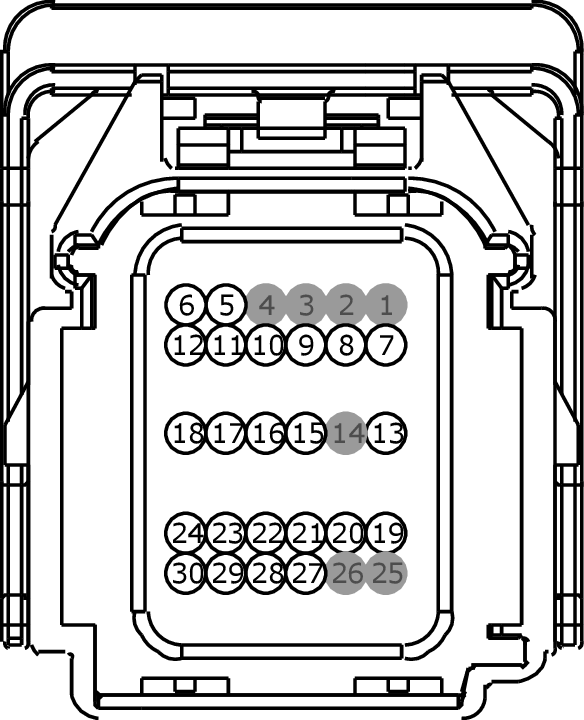

Connector End View (C310A) - RESTRAINTS CONTROL MODULE (RCM)

WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

Description

RESTRAINTS CONTROL MODULE (RCM)

Color

Harness

14401

Base Part #

part# N/A

Service Pigtail

Not Available

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	*	*	Not Used
3	*	*	Not Used
4	*	*	Not Used
5	CR139 (VT-WH)	20	CTRL MOD. - AIR BAG DRIVER KNEE +
6	RR139 (YE)	20	CTRL MOD. - AIR BAG DRIVER KNEE -
7	CR144 (GY-OG)	20	CTRL MOD. - AIR BAG FRONT PASSENGER ADAPTIVE VENTING +
8	RR144 (VT-GN)	20	CTRL MOD. - AIR BAG FRONT PASSENGER ADAPTIVE VENTING -
9	RR168 (BU-WH)	20	CTRL MOD. - PYROTECHNIC STEERING COLUMN -
10	CR168 (WH-GN)	20	CTRL MOD. - PYROTECHNIC STEERING COLUMN +
11	CR169 (VT)	20	CTRL MOD. - AIR BAG PASSENGER KNEE +
12	RR169 (GY-VT)	20	CTRL MOD. - AIR BAG PASSENGER KNEE -
13	CR116 (GN-WH)	22	CTRL MOD. - INDICATOR PASSENGER AIR BAG DEACTIVATE +
14	*	*	Not Used
15	RR130 (GN-BU)	20	CTRL MOD. - SENSOR IMPACT FRONT 2ND
16	VR214 (WH-BU)	20	SENSOR - IMPACT FRONT 2ND
17	VR213 (VT-GN)	20	SENSOR - IMPACT FRONT 1ST
18	RR129 (YE-GY)	20	CTRL MOD. - SENSOR IMPACT FRONT 1ST -
19	CBP35 (YE-GY)	22	FUSE - 35 OR CIRCUIT BREAKER
20	RR116 (BN-GN)	22	CTRL MOD. - INDICATOR PASSENGER AIR BAG DEACTIVATE -
21	RR102 (WH)	20	CTRL MOD. - AIR BAG DRIVER 2 -
22	CR102 (BU)	20	CTRL MOD. - AIR BAG DRIVER 2 +
23	CR104 (YE-GY)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 2 +
24	RR104 (WH-BU)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 2 -
25	*	*	Not Used
26	*	*	Not Used
27	RR103 (VT-GN)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 1 -
28	CR103 (GY-BU)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 1 +
29	CR101 (VT-BN)	20	CTRL MOD. - AIR BAG DRIVER 1+
30	RR101 (YE-GN)	20	CTRL MOD. - AIR BAG DRIVER 1 -
