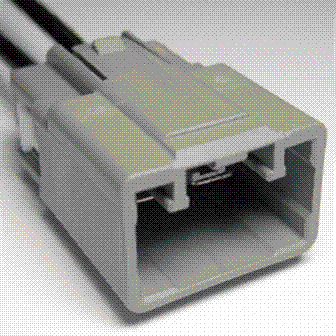

Connector End View (C268) - INLINE
WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Description
INLINE
Color
Base Part #
Service Pigtail
See Below
MALE
Harness 18B518
FEMALE
Harness 14401
|
Pin |
Circuit |
Gauge |
Qualifier |
|
1 |
CH402 (YE-GN) |
10 |
|
|
2 |
GD216 (BK-VT) |
10 |
|
Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1190 |
Service Part Number: 3U2Z-14S411-EFAB Gauge: 10 Pin material: Tin (greased) Cavities: 2 Vehicle Uses: Terminal - Rear Window Defroster Grid |
