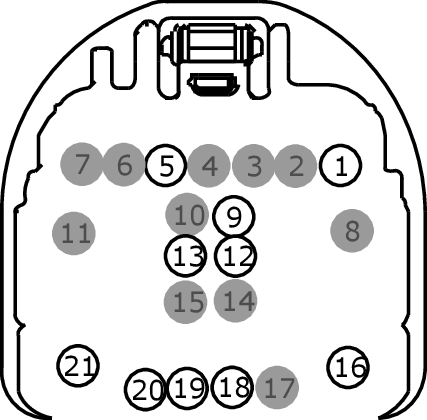

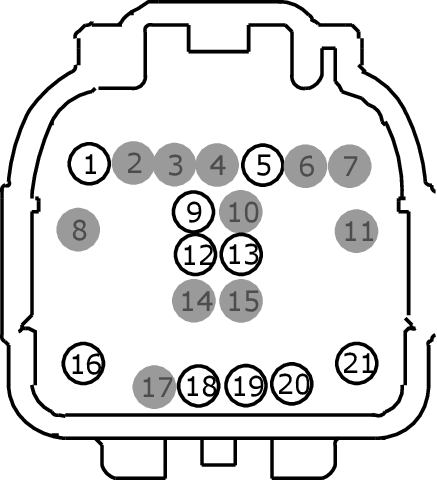

Connector End View (C263) - INLINE
WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Description
INLINE
Color
Base Part #
Service Pigtail
Not Available
MALE
Harness 14A005
FEMALE
Harness 14401
|
Pin |
Circuit |
Gauge |
Qualifier |
|
1 |
SME56 (BN) |
22 |
|
|
2 |
* |
* |
|
|
3 |
* |
* |
|
|
4 |
* |
* |
|
|
5 |
CBP33 (VT-WH) |
18 |
14A005 |
|
5 |
CBP33 (WH-BN) |
18 |
|
|
5 |
CBP33 (WH-BN) |
18 |
14A005 |
|
6 |
* |
* |
|
|
7 |
* |
* |
|
|
8 |
* |
* |
|
|
9 |
CLN09 (YE-GN) |
22 |
|
|
10 |
* |
* |
|
|
11 |
* |
* |
|
|
12 |
GD214 (BK-BU) |
18 |
14401 |
|
12 |
SME23 (RD) |
22 |
14A005 |
|
12 |
SME23 (RD) |
26 |
14A005 |
|
12 |
SME23 (VT-RD) |
22 |
|
|
13 |
GD383 (BK-WH) |
20 |
|
|
13 |
GD383 (BK-WH) |
22 |
14401 |
|
14 |
* |
* |
|
|
15 |
* |
* |
|
|
16 |
CBP37 (BU-BN) |
14 |
14A005 |
|
16 |
CBP37 (WH) |
14 |
14401 |
|
16 |
CBP37 (WH) |
20 |
14401 |
|
17 |
* |
* |
|
|
18 |
RHS10 (BU-OG) |
20 |
14401 |
|
18 |
VHS27 (VT) |
4 |
14A005 |
|
19 |
CHS07 (GY-BU) |
18 |
|
|
19 |
RHS10 (BU-OG) |
22 |
14401 |
|
19 |
VHS27 (BU-OG) |
4 |
14A005 |
|
19 |
VHS27 (WH-OG) |
4 |
14A005 |
|
20 |
CHS07 (GY-BU) |
18 |
|
|
21 |
CBB23 (BN-YE) |
20 |
|
|
21 |
CBB23 (BN-YE) |
22 |
