Connector End View (C256A) - PASSENGER AIRBAG
WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Description
PASSENGER AIRBAG
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CR103 (GY-BU) |
20 |
CTRL MOD. - AIR BAG FRONT PASSENGER 1 + |
|
|
2 |
RR103 (VT-GN) |
20 |
CTRL MOD. - AIR BAG FRONT PASSENGER 1 - |
|

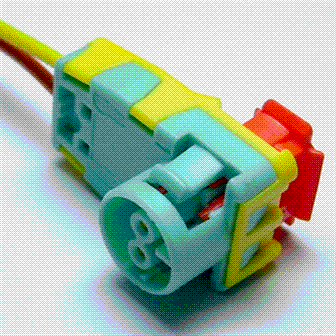

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1226 |
Service Part Number: BU2Z-14S411-BJA Gauge: 20 Pin material: FCI - Airbag Cavities: 2 Vehicle Uses Squib - Airbag (Passenger) |
