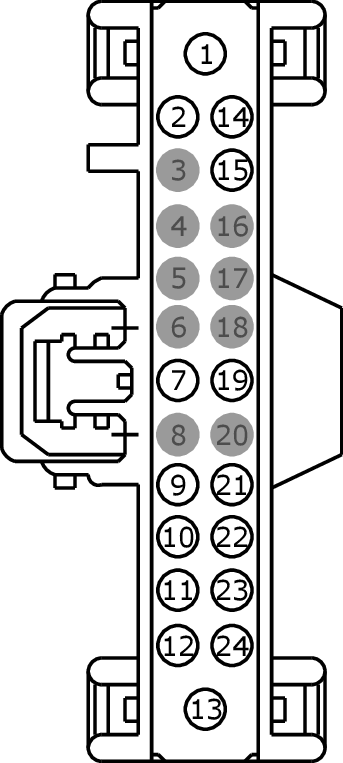

Connector End View (C240A) - AUDIO FRONT CONTROL MODULE (ACM)
Description
AUDIO FRONT CONTROL MODULE (ACM)
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CBP33 (WH-BN) |
18 |
FUSE - 33 OR CIRCUIT BREAKER |
|
|
2 |
CME36 (GN-VT) |
18 |
CTRL MOD. - AUDIO # AMPLIFIER ANTENNA REAR WINDOW |
|
|
3 |
* |
* |
Not Used |
|
|
4 |
* |
* |
Not Used |
|
|
5 |
* |
* |
Not Used |
|
|
6 |
* |
* |
Not Used |
|
|
7 |
SME56 (BN) |
22 |
CTRL MOD. - AUDIO # SUBWOOFER 2ND ENABLE |
|
|
8 |
* |
* |
Not Used |
|
|
9 |
RME09 (BN-YE) |
18 |
CTRL MOD. - AUDIO # SPEAKER LEFT REAR |
|
|
10 |
RME07 (WH-BN) |
18 |
CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR |
|
|
11 |
RME10 (WH-OG) |
18 |
CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR |
|
|
12 |
RME12 (BN-BU) |
18 |
CTRL MOD. - AUDIO # SPEAKER RIGHT REAR |
|
|
13 |
GD215 (BK-GY) |
16 |
GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT |
|
|
14 |
VDB29 (GN-BU) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 |
|
|
15 |
VDB30 (WH-GN) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 |
|
|
16 |
* |
* |
Not Used |
|
|
17 |
* |
* |
Not Used |
|
|
18 |
* |
* |
Not Used |
|
|
19 |
DME07 (*) |
20 |
CTRL MOD. - AUDIO # FRONT |
|
|
20 |
* |
* |
Not Used |
|
|
21 |
VME09 (WH-GN) |
18 |
CTRL MOD. - AUDIO # SPEAKER LEFT REAR |
|
|
22 |
VME07 (WH) |
18 |
CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR |
|
|
23 |
VME10 (WH-VT) |
18 |
CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR |
|
|
24 |
VME12 (BN-WH) |
18 |
CTRL MOD. - AUDIO # SPEAKER RIGHT REAR |
|
Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1440 |
Service Part Number: FU2Z-14S411-ALA Gauge: 14 20 Pin material: Tin & Silver Cavities: 24 Vehicle Uses DVD Player Module - Audio Control Module - Body Control Module Gateway Radio Test Connector - Diagnostic |
