Connector End View (C233) - IN-VEHICLE TEMPERATURE AND HUMIDITY SENSOR

WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

Description

IN-VEHICLE TEMPERATURE AND HUMIDITY SENSOR

Color

Harness

14401

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VHA31 (GN-BN)	22	SENSOR - REAR TEMP
2	VH414 (GN)	26	SENSOR - INCAR TEMP.
3	LH111 (BN-WH)	22	CTRL MOD. - CLIMATE # GENERIC VREF
3	LH111 (BN-WH)	26	CTRL MOD. - CLIMATE # GENERIC VREF
4	VH413 (WH)	26	SENSOR - HUMIDITY
5	RH111 (GY)	26	CTRL MOD. - CLIMATE # GENERIC VREF RETURN
6	CBB55 (BN-BU)	20	FUSE - 55 OR CIRCUIT BREAKER
6	CBP21 (BU-GY)	22	FUSE - 21 OR CIRCUIT BREAKER

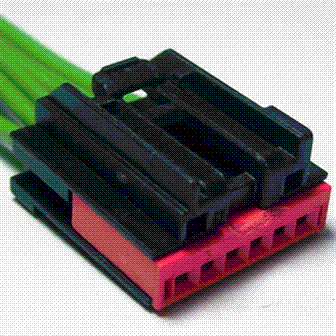

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1242

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-MJB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Indicator - Passenger Airbag Deactivation (PADI)

Sensor - EATC In Car Temperature

Switch - Multifunction
