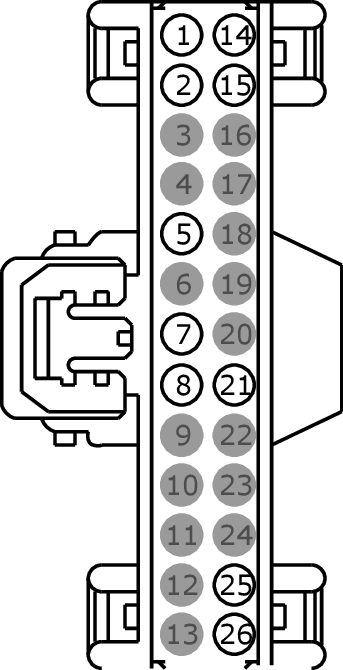

Connector End View (C220) - INSTRUMENT PANEL CLUSTER (IPC)
Description
INSTRUMENT PANEL CLUSTER (IPC)
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
Not Available
Check for Terminal Part Numbers
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
RMC33 (WH) |
26 |
CTRL MOD. - SENSOR FUEL LEVEL 2 |
|
|
2 |
RMC32 (GN-WH) |
26 |
CTRL MOD. - SENSOR FUEL LEVEL |
|
|
3 |
* |
* |
Not Used |
|
|
4 |
* |
* |
Not Used |
|
|
5 |
GD214 (BK-BU) |
22 |
GROUND - INSTRUMENT PANEL STRUCTURE |
|
|
6 |
* |
* |
Not Used |
|
|
7 |
CET52 (GN) |
26 |
SWITCH - TRANSMISSION PARK DETECT |
|
|
8 |
CMC20 (VT) |
22 |
SWITCH - LOW LEVEL WASHER FLUID |
|
|
8 |
CMC20 (VT) |
20 |
SWITCH - LOW LEVEL WASHER FLUID |
|
|
9 |
* |
* |
Not Used |
|
|
10 |
* |
* |
Not Used |
|
|
11 |
* |
* |
Not Used |
|
|
12 |
* |
* |
Not Used |
|
|
13 |
* |
* |
Not Used |
|
|
14 |
VMC23 (GN) |
26 |
SENSOR - FUEL LEVEL 2 |
|
|
15 |
VMC11 (YE) |
26 |
SENSOR - FUEL LEVEL |
|
|
16 |
* |
* |
Not Used |
|
|
17 |
* |
* |
Not Used |
|
|
18 |
* |
* |
Not Used |
|
|
19 |
* |
* |
Not Used |
|
|
20 |
* |
* |
Not Used |
|
|
21 |
SBP13 (GY-RD) |
22 |
FUSE - 13 OR CIRCUIT BREAKER |
|
|
22 |
* |
* |
Not Used |
|
|
23 |
* |
* |
Not Used |
|
|
24 |
* |
* |
Not Used |
|
|
25 |
VDB29 (GN) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 |
|
|
25 |
VDB29 (GN-BU) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 |
|
|
26 |
VDB30 (WH) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 |
|
|
26 |
VDB30 (WH-GN) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 |
