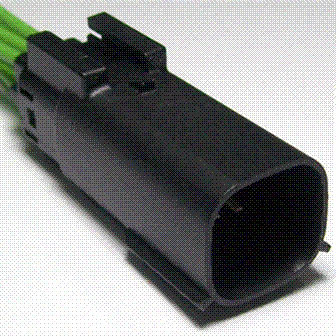

Connector End View (C192) - INLINE
WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Description
INLINE
Color
Base Part #
Service Pigtail
See Below
MALE
Harness 12A581
FEMALE
Harness 12A581
|
Pin |
Circuit |
Gauge |
Qualifier |
|
1 |
CBB25 (WH-OG) |
18 |
12A581 |
|
1 |
CBB25 (WH-OG) |
20 |
12A581 |
|
2 |
* |
* |
12A581 |
|
2 |
VDB25 (GN-OG) |
20 |
12A581 |
|
3 |
* |
* |
|
|
4 |
CBB25 (WH-OG) |
18 |
|
|
5 |
* |
* |
12A581 |
|
5 |
VDB26 (GY-BU) |
20 |
12A581 |
|
6 |
* |
* |
|
Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1426 |
Service Part Number: FU2Z-14S411-TA Gauge: 16 Pin material: Silver Cavities: 6 Vehicle Uses: Camera - Reverse Park Aid Lamp - Park/Turn/Stop Sensor - Coolant Temperature Sensor - O2 (HEGO/ EGO) |
