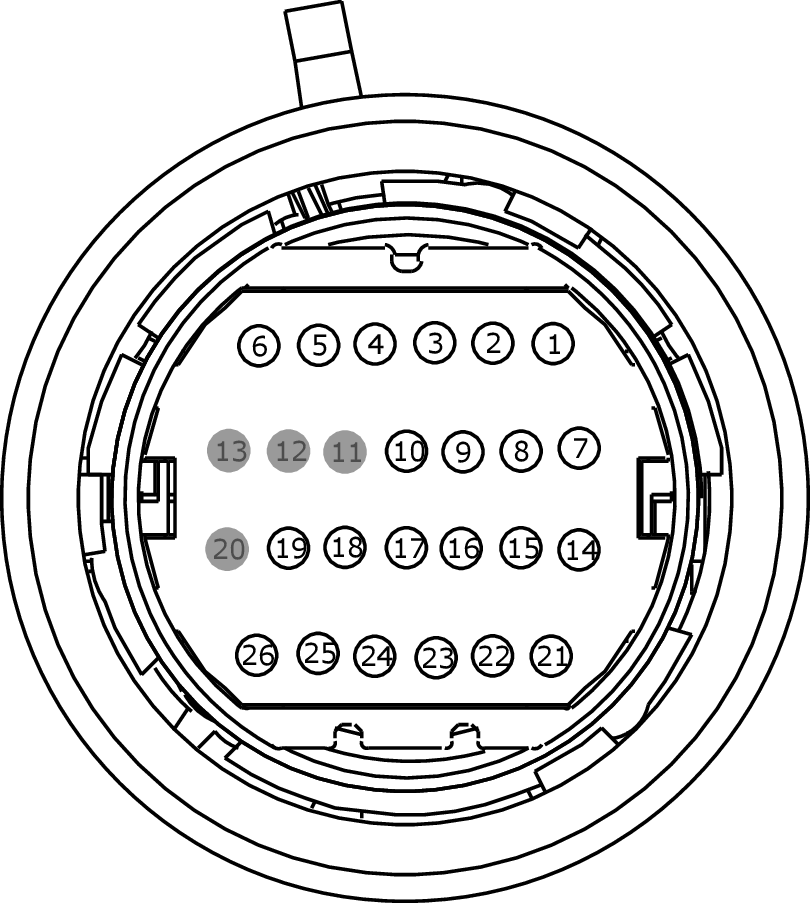

Connector End View (C168C) - HF35 TRANSMISSION
Description
HF35 TRANSMISSION
Color
BK
Harness
3C221
Base Part #
part# N/A
Service Pigtail
Not Available
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
VYT23 (WH) |
20 |
GENERATOR RESOLVER 1 (GR1) |
|
|
2 |
VYT24 (BN-WH) |
20 |
GENERATOR RESOLVER 2 (GR2) |
|
|
3 |
VYT25 (VT-BN) |
20 |
GENERATOR COSINE 2 (GC2) |
|
|
4 |
VYT26 (YE-BU) |
20 |
GENERATOR COSINE 1 (GC1) |
|
|
5 |
VYT27 (WH-BN) |
20 |
GENERATOR SINE 2 (GS2) |
|
|
6 |
VYT28 (BN-YE) |
20 |
GENERATOR SINE 1 (GS1) |
|
|
7 |
LET57 (WH-GN) |
20 |
CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE ANALOG 1 (TR-A1BVREF) |
|
|
8 |
VET32 (VT) |
20 |
SENSOR - TRANSMISSION RANGE # ANALOG 1 (TR-A1) |
|
|
9 |
RET24 (BN-BU) |
20 |
CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE ANALOG 1 (TR-A1RTN) |
|
|
10 |
VET32 (VT) |
20 |
SENSOR - TRANSMISSION RANGE # ANALOG 2 (TR-A2) |
|
|
11 |
* |
* |
Not Used |
|
|
12 |
* |
* |
Not Used |
|
|
13 |
* |
* |
Not Used |
|
|
14 |
VYT29 (VT-GN) |
20 |
GENERATOR COIL TEMPERATURE (GCT) |
|
|
15 |
RYT29 (WH-BU) |
20 |
GENERATOR COIL TEMPERATURE RETURN (GCTRTN) |
|
|
16 |
VYT21 (BU-GN) |
20 |
MOTOR COIL TEMPERATURE (MCT) |
|
|
17 |
RYT21 (GN-WH) |
20 |
MOTOR COIL TEMPERATURE RETURN (MCTRTN) |
|
|
18 |
VYT22 (GN-OG) |
20 |
TRANSMISSION FLUID TEMPERATURE (TFT) |
|
|
19 |
RYT22 (GY-OG) |
20 |
TRANSMISSION FLUID TEMPERATURE RETURN (TFTRTN) |
|
|
20 |
* |
* |
Not Used |
|
|
21 |
VYT19 (GN-BN) |
20 |
MOTOR SINE 1 (MS1) |
|
|
22 |
VYT20 (YE-VT) |
20 |
MOTOR SINE 2 (MS2) |
|
|
23 |
VYT17 (BN-BU) |
20 |
MOTOR COSINE 1 (MC1) |
|
|
24 |
VYT18 (BU-WH) |
20 |
MOTOR COSINE 2 (MC2) |
|
|
25 |
VYT16 (WH-GN) |
20 |
MOTOR RESOLVER 2 (MR2) |
|
|
26 |
VYT15 (YE-GY) |
20 |
MOTOR RESOLVER 1 (MR1) |
