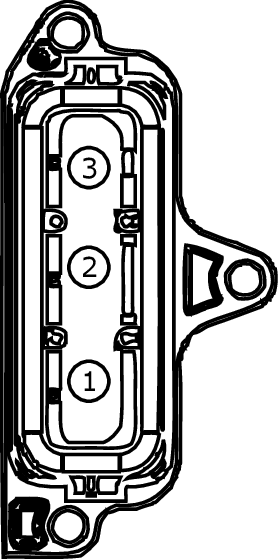

Connector End View (C168B) - HF35 TRANSMISSION
WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Description
HF35 TRANSMISSION
Color
Harness
14183
Base Part #
part# N/A
Service Pigtail
Not Available
Check for Terminal Part Numbers
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
HYA07 (WH-LB) |
4 |
GENERATOR W PHASE (GWP) |
|
|
2 |
HYA08 (WH-OG) |
4 |
GENERATOR V PHASE (GVP) |
|
|
3 |
HYA09 (WH-BU) |
4 |
GENERATOR U PHASE (GUP) |
