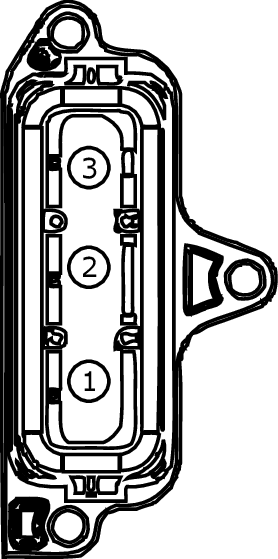

Connector End View (C168A) - HF35 TRANSMISSION
WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Description
HF35 TRANSMISSION
Color
Harness
14B245
Base Part #
part# N/A
Service Pigtail
Not Available
 Courtesy of FORD MOTOR COMPANY
|
Check for Terminal Part Numbers
|
Pin
|
Circuit
|
Gauge
|
Circuit Function
|
Qualifier
|
|
1
|
HYA04 (WH-LB)
|
4
|
MOTOR W PHASE (MWP)
|
|
2
|
HYA05 (WH-OG)
|
4
|
MOTOR V PHASE (MVP)
|
|
3
|
HYA06 (WH-BU)
|
4
|
MOTOR U PHASE (MUP)
|
