Connector End View (C149) - BRAKE BOOSTER TRAVEL SENSOR
WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Description
BRAKE BOOSTER TRAVEL SENSOR
Color
Harness
12A581
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CCB33 (GY-OG) |
20 |
CTRL MOD. - SENSOR BOOST PEDAL + |
|
|
2 |
RCB33 (VT-GY) |
20 |
CTRL MOD. - SENSOR BOOST PEDAL - |
|
|
3 |
VCB34 (WH-BU) |
20 |
SENSOR - BOOST PEDAL |
|
Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1379 |

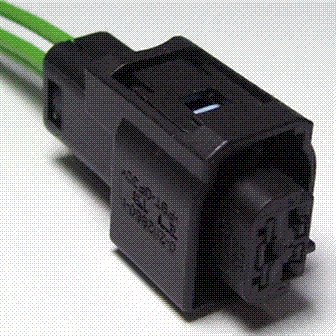

Service Part Number: EU2Z-14S411-AA Gauge: 18 Pin material: Silver Cavities: 3 Vehicle Uses Sensor - Brake Booster Travel |
