Connector End View (C142) - HEATED OXYGEN SENSOR (HO2S) #12
WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Description
HEATED OXYGEN SENSOR (HO2S) #12
Color
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CBK02 (GN) |
18 |
FUSE - 2 OR CIRCUIT BREAKER |
|
|
2 |
CE233 (WH-OG) |
18 |
CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR12) |
|
|
3 |
RE406 (GY-VT) |
18 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (SIGRTN) |
|
|
4 |
VE731 (YE-GN) |
18 |
SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12) |
|

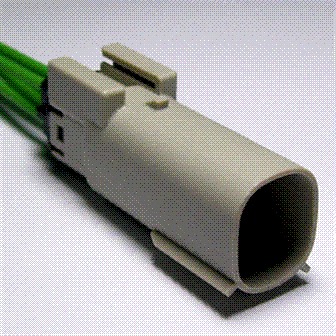

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1444 |
Service Part Number: FU2Z-14S411-AHA Gauge: 16 Pin material: Silver Cavities: 4 Vehicle Uses Lamp - License Sensor - Catalyst Monitor Sensor - O2 (HEGO/ EGO) |
