Connector End View (C133) - INLINE
WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Description
INLINE
Color
Base Part #
Service Pigtail
See Below
MALE
Harness 14K011
FEMALE
Harness 15K867
|
Pin |
Circuit |
Gauge |
Qualifier |
|
1 |
CPL25 (BU-OG) |
22 |
|
|
2 |
GD120 (BK-GN) |
22 |
|

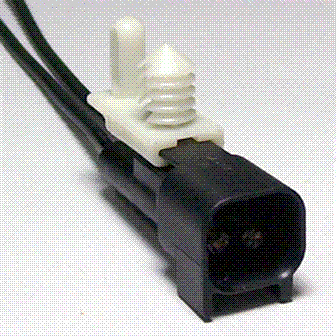

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1186 |
Service Part Number: BU2Z-14S411-AKA Gauge: 16 Pin material: Tin (greased) Cavities: 2 Vehicle Uses: Speaker - Tweeter - LH - Front Speaker - Tweeter - LH - Rear Speaker - Tweeter - RH - Front Speaker - Tweeter - RH - Rear Switch - Seatbelt |
