Connector End View (C132) - AMBIENT AIR TEMPERATURE (AAT) SENSOR
WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Description
AMBIENT AIR TEMPERATURE (AAT) SENSOR
Color
Harness
15K867
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
VE750 (GN-BU) |
22 |
SENSOR - POWERTRAIN AMBIENT TEMP. SENSOR (AAT) |
|
|
2 |
RE407 (YE-VT) |
22 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN) |
|
Available Pigtail Kits |
|
|

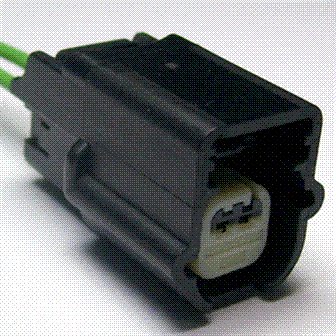

Pigtail Kit Part Number WPT-1306 |
Service Part Number: AU2Z-14S411-AGB Gauge: 20 Pin material: Silver Cavities: 2 Vehicle Uses Sensor - Ambient Temp Sensor - Side Impact |
