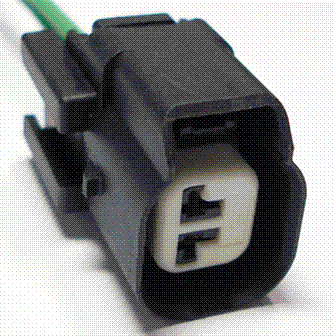

Connector End View (C124) - LOW BRAKE FLUID WARNING INDICATOR SWITCH

WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

Description

LOW BRAKE FLUID WARNING INDICATOR SWITCH

Color

Harness

12A581

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD120 (BK-GN)	20	GROUND - FENDER FRONT LEFT
2	CMC19 (GY-VT)	20	SWITCH - LOW LEVEL BRAKE FLUID

Available Pigtail Kits

Pigtail Kit Part Number

WPT-984

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-BXAB

Gauge:

Pin material:

Silver

Cavities:
