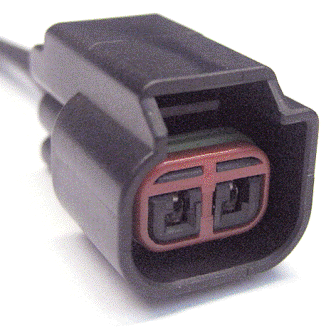

Connector End View (C123) - EVAPORATIVE EMISSION (EVAP) PURGE VALVE
WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Description
EVAPORATIVE EMISSION (EVAP) PURGE VALVE
Color
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CE113 (WH-BN) |
18 |
CTRL MOD. - POWERTRAIN # CANISTER PURGE VALVE (EVAPCP) |
|
|
2 |
CBK02 (GN) |
18 |
FUSE - 2 OR CIRCUIT BREAKER |
|
Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-905 |
Service Part Number: 8U2Z-14S411-EA Gauge: 16 Pin material: Tin Cavities: 2 Vehicle Uses Relay - Daytime Running Lamp (DRL) Switch - Heater / A/C Blower (Front) |
