Connector End View (C108) - KNOCK SENSOR 2 (KS2)
WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Description
KNOCK SENSOR 2 (KS2)
Color
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
RE324 (BN-GN) |
20 |
CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND BANK 1ST (KS2-) |
|
|
2 |
VE802 (BN-BU) |
20 |
SENSOR - KNOCK 2ND BANK 1ST (KS2+) |
|
Available Pigtail Kits |
|
|

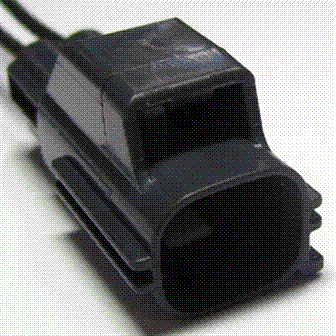

Pigtail Kit Part Number WPT-987 |
Service Part Number: 3U2Z-14S411-CZAB Gauge: 16 Pin material: Tin (greased) Cavities: 2 Vehicle Uses Sensor - Cylinder Head Temperature Sensor - Knock |
