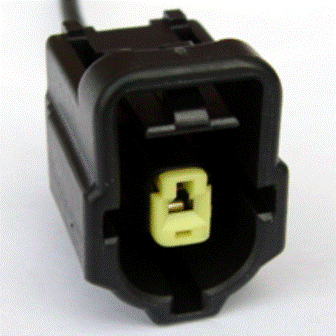

Connector End View (C103) - OIL PRESSURE SWITCH
WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Description
OIL PRESSURE SWITCH
Color
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CMC24 (GY) |
18 |
SWITCH - OIL PRESSURE |
|
Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-439 |
Service Part Number: 3U2Z-14S411-MHA Gauge: 14 Pin material: Tin Cavities: 1 Vehicle Uses Sensor - Oil Pressure Switch - Oil Sending Unit |
