Connector End View (C9221) - MICROPHONE
WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Connector:C9221
Description
MICROPHONE
Color
Harness
14335
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
* |
* |
Not Used |
|
|
2 |
VMM23 (BN-VT) |
22 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # MICROPHONE PHONE/VOICE CONTROL + |
|
|
3 |
RMM23 (WH-GN) |
22 |
CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # MICROPHONE PHONE/VOICE CONTROL - |
|

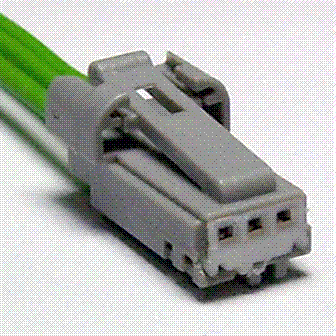

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1182 |
Service Part Number: BU2Z-14S411-AFA Gauge: 18 Pin material: Silver Cavities: 3 Vehicle Uses Microphone |
