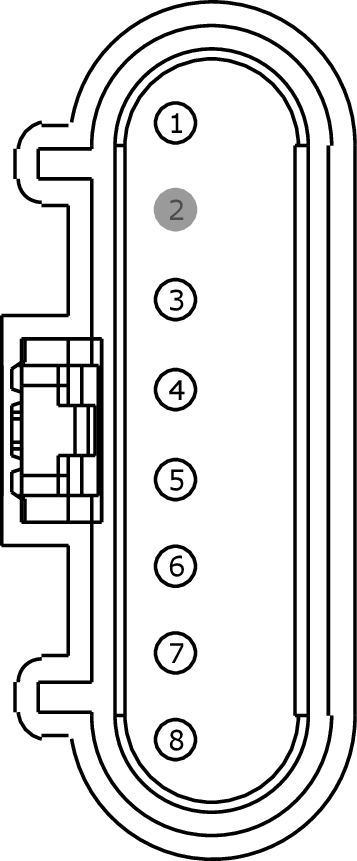

Connector End View (C4816) - POWER STRIKER MODULE

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

SBB80 (VT-RD)

14

FUSE - 80 OR CIRCUIT BREAKER

2

*

*

Not Used

3

GD347 (BK-VT)

14

GROUND - PILLAR C OR QUARTER PANEL LEFT

4

CPR65 (BU-GN)

22

LATCH - LUGGAGE COMPARTMENT # LATCH SWITCH FULL

5

CPR72 (GN-BU)

22

CTRL MOD. - LUGGAGE COMPARTMENT LID # MOTOR STRIKER (-)

6

CLN13 (WH-BU)

22

SWITCH - LUGGAGE COMPARTMENT LAMP

7

CPR61 (BN)

22

CTRL MOD. - LUGGAGE COMPARTMENT LID # CINCH +

8

CPR71 (GY-BN)

22

CTRL MOD. - LUGGAGE COMPARTMENT LID # MOTOR STRIKER (+)

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1366

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-MBB

Gauge:

16

Pin material:

Silver

Cavities:

8

Vehicle Uses

Actuator - Door Lock - LH - Front

Actuator - Door Lock - LH - Rear

Actuator - Door Lock - RH - Front

Actuator - Door Lock - RH - Rear

Module - Liftgate

Switch - Door Ajar / Interior Lamp

Switch - Door Lock (LH)

Switch - Door Lock (RH)

Switch - Sliding Door Contact
