Connector End View (C4803) - TELEMATIC CONTROL UNIT MODULE (TCU)

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

SBP10 (YE-RD)

20

FUSE - 10 OR CIRCUIT BREAKER

2

*

*

Not Used

3

*

*

Not Used

4

*

*

Not Used

5

*

*

Not Used

6

*

*

Not Used

7

*

*

Not Used

8

VDB29 (GN)

22

CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH

9

*

*

Not Used

10

*

*

Not Used

11

*

*

Not Used

12

*

*

Not Used

13

GD347 (BK-VT)

22

GROUND - PILLAR C OR QUARTER PANEL LEFT

14

*

*

Not Used

15

*

*

Not Used

16

VDB30 (WH)

22

CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW

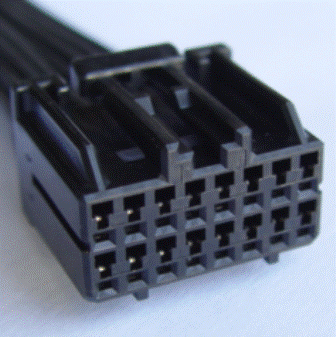

Available Pigtail Kits

Pigtail Kit Part Number

WPT-242

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-EBA

Gauge:

18

Pin material:

Tin

Cavities:

16

Vehicle Uses

Module - Lighting Control

Module - Seat Memory
