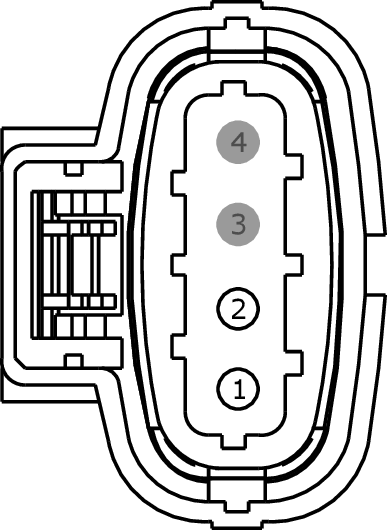

Connector End View (C4459) - LUGGAGE COMPARTMENT LID RELEASE SWITCH
WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Connector:C4459
Description
LUGGAGE COMPARTMENT LID RELEASE SWITCH
Color
Harness
15K868
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CPL60 (BN-YE) |
22 |
SWITCH - LIFTGATE GLASS RELEASE |
|
|
2 |
GD347 (BK-VT) |
22 |
GROUND - PILLAR C OR QUARTER PANEL LEFT |
|
|
3 |
* |
* |
Not Used |
|
|
4 |
* |
* |
Not Used |
|

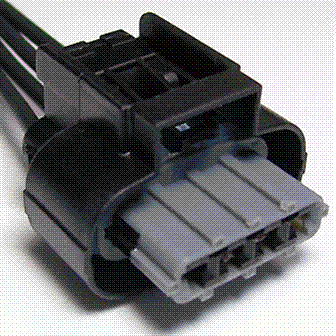

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1232 |
Service Part Number: BU2Z-14S411-ATA Gauge: 14 Pin material: Tin (greased) Cavities: 4 Vehicle Uses Sensor - Manifold Pressure/Intake Temperature |
