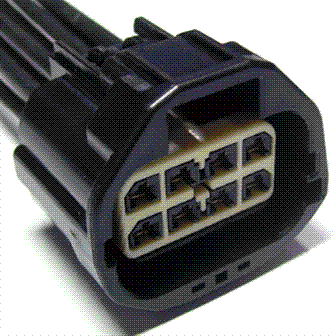

Connector End View (C4379) - ALL WHEEL DRIVE (AWD) RELAY MODULE

WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

Connector:C4379

Description

ALL WHEEL DRIVE (AWD) RELAY MODULE

Color

Harness

14A005

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBP37 (BU-BN)	14	FUSE - 37 OR CIRCUIT BREAKER
1	CBP37 (WH)	14	FUSE - 37 OR CIRCUIT BREAKER
2	*	*	Not Used
3	VCF35 (GN)	22	CTRL MOD. - POWERTRAIN # ALL WHEEL DRIVE COMMAND (AWDC)
4	GD313 (BK-GN)	12	GROUND - PILLAR C OR QUARTER PANEL RIGHT # 2ND POINT
5	CCF21 (VT-WH)	20	CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE INTELLIGENT TORQUE CONTROL COUPLING SOLENOID +
5	CCF21 (VT-WH)	18	CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE INTELLIGENT TORQUE CONTROL COUPLING SOLENOID +
6	VCF34 (WH)	22	CTRL MOD. - ALL WHEEL DRIVE # MONITOR (AWDM)
7	*	*	Not Used
8	RCF21 (BN-WH)	20	CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE INTELLIGENT TORQUE CONTROL COUPLING SOLENOID -
8	RCF21 (BN-WH)	18	CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE INTELLIGENT TORQUE CONTROL COUPLING SOLENOID -

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1064

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-ACA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses

Module - All Wheel Drive
