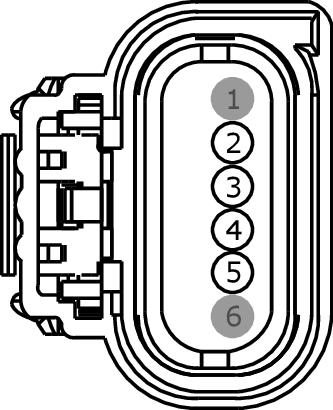

Connector End View (C4369) - SIDE OBSTACLE DETECTION CONTROL MODULE) - LEFT (SOD-L)
WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Connector:C4369
Description
SIDE OBSTACLE DETECTION CONTROL MODULE - LEFT (SOD-L)
Color
Harness
14A005
Base Part #
part# N/A
Service Pigtail
Not Available
Check for Terminal Part Numbers
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
* |
* |
Not Used |
|
|
2 |
CBB23 (BN-YE) |
20 |
FUSE - 23 OR CIRCUIT BREAKER |
|
|
3 |
VDB06 (GY-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH |
|
|
4 |
VDB07 (VT-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW |
|
|
5 |
GD347 (BK-VT) |
20 |
GROUND - PILLAR C OR QUARTER PANEL LEFT |
|
|
6 |
* |
* |
Not Used |
