Connector End View (C4339) - LUGGAGE COMPARTMENT LID POWER STRIKER MOTOR
WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Connector:C4339
Description
LUGGAGE COMPARTMENT LID POWER STRIKER MOTOR
Color
Harness
14A005
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CPR71 (GY-BN) |
22 |
CTRL MOD. - LUGGAGE COMPARTMENT LID # MOTOR STRIKER (+) |
|
|
2 |
CPR61 (BN) |
22 |
CTRL MOD. - LUGGAGE COMPARTMENT LID # CINCH + |
|
|
3 |
CPR65 (BU-GN) |
22 |
LATCH - LUGGAGE COMPARTMENT # LATCH SWITCH FULL |
|
|
4 |
GD347 (BK-VT) |
22 |
GROUND - PILLAR C OR QUARTER PANEL LEFT |
|
|
5 |
CPR72 (GN-BU) |
22 |
CTRL MOD. - LUGGAGE COMPARTMENT LID # MOTOR STRIKER (-) |
|
Available Pigtail Kits |
|
|

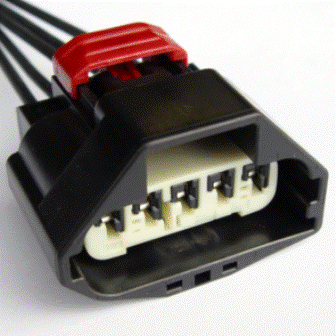

Pigtail Kit Part Number WPT-738 |
Service Part Number: 3U2Z-14S411-BFAA Gauge: 16 Pin material: Tin Cavities: 5 Vehicle Uses Relay - Torque On Demand (TOD) |
