Connector End View (C4186) - POWER DECKLID CHIME

WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

Connector:C4186

Description

POWER DECKLID CHIME

Color

Harness

14A005

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPR56 (VT-BN)	22	CTRL MOD. - POWER LUGGAGE COMPARTMENT # CHIME +
2	RPR56 (GY-VT)	22	CTRL MOD. - POWER LUGGAGE COMPARTMENT # CHIME -

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1322

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-CSAB

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Lamp - Dome

Lamp - Dome/Map

Module - Radio Power Antenna

Module - Warning Chime/ Beltminder

Solenoid - Brake Shift Park Interlock

Speaker - Reverse Park Aid (RPA)

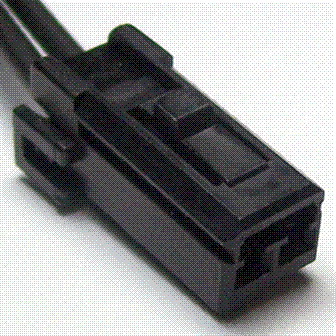

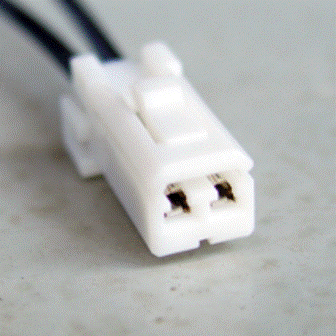

Pigtail Kit Part Number

WPT-675

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-CSAA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses

Lamp - PRNDL Indicator

Module - Driver Door

Module - Heated Seat (driver)

Sensor - Fuel Tank Temperature
