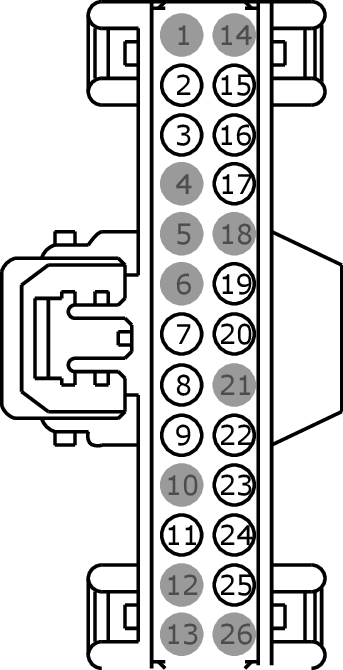

Connector End View (C4174B) - REAR GATE TRUNK MODULE (RGTM)
Connector:C4174B
Description
REAR GATE TRUNK MODULE (RGTM)
Color
Harness
14A005
Base Part #
part# N/A
Service Pigtail
Not Available
Check for Terminal Part Numbers
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
* |
* |
Not Used |
|
|
2 |
CPL44 (YE-OG) |
22 |
SWITCH - LIFTGATE/DECKLID/CARGO # AJAR |
|
|
3 |
CPR63 (GY-YE) |
22 |
SWITCH - LUGGAGE COMPARTMENT # OPEN/CLOSE |
|
|
4 |
* |
* |
Not Used |
|
|
5 |
* |
* |
Not Used |
|
|
6 |
* |
* |
Not Used |
|
|
7 |
VPR53 (BU-WH) |
22 |
SENSOR - POWER LUGGAGE COMPARTMENT # OPTICAL/HALL 1 |
|
|
8 |
VPR54 (BU-BN) |
22 |
SENSOR - POWER LUGGAGE COMPARTMENT # OPTICAL/HALL 2 |
|
|
9 |
RPR56 (GY-VT) |
22 |
CTRL MOD. - POWER LUGGAGE COMPARTMENT # CHIME - |
|
|
10 |
* |
* |
Not Used |
|
|
11 |
CPR89 (BN-BU) |
22 |
SWITCH - POWER LIFTGATE # OPEN/CLOSE #2 (REAR) |
|
|
12 |
* |
* |
Not Used |
|
|
13 |
* |
* |
Not Used |
|
|
14 |
* |
* |
Not Used |
|
|
15 |
CPL81 (BN-VT) |
22 |
CTRL MOD. - DOOR LOCK # LIFTGATE/DECKLID/CARGO AJAR |
|
|
16 |
CPR72 (GN-BU) |
22 |
CTRL MOD. - LUGGAGE COMPARTMENT LID # MOTOR STRIKER (-) |
|
|
17 |
CPR65 (BU-GN) |
22 |
LATCH - LUGGAGE COMPARTMENT # LATCH SWITCH FULL |
|
|
18 |
* |
* |
Not Used |
|
|
19 |
CPR55 (GN-BU) |
22 |
CTRL MOD. - POWER LUGGAGE COMPARTMENT # SENSOR POWER |
|
|
20 |
RPR55 (WH-BU) |
22 |
CTRL MOD. - POWER LUGGAGE COMPARTMENT # SENSOR RETURN |
|
|
21 |
* |
* |
Not Used |
|
|
22 |
CPR56 (VT-BN) |
22 |
CTRL MOD. - POWER LUGGAGE COMPARTMENT # CHIME + |
|
|
23 |
VDB07 (VT) |
26 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW |
|
|
24 |
VDB06 (GY) |
26 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH |
|
|
25 |
CPL60 (BN-YE) |
22 |
SWITCH - LIFTGATE GLASS RELEASE |
|
|
26 |
* |
* |
Not Used |
