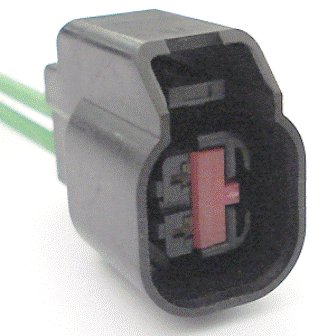

Connector End View (C4069) - SUBWOOFER, RIGHT

WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

Connector:C4069

Description

SUBWOOFER, RIGHT

Color

Harness

14A005

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VME02 (VT)	16	CTRL MOD. - AUDIO # SPEAKER SUBWOOFER RIGHT REAR 1 +
2	RME02 (YE)	16	CTRL MOD. - AUDIO # SPEAKER SUBWOOFER RIGHT REAR 1 -

Available Pigtail Kits

Pigtail Kit Part Number

WPT-966

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-CNB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Actuator - Door Lock - Decklid/Liftgate

Actuator - Liftgate Glass

Lamp - CHMSL (Center High Mount Stop Lamp)

Module - Warning Chime/ Beltminder

Sensor - Brake Pedal Position

Speaker - Door (front)

Speaker - Door (rear)

Speaker - Front

Speaker - Rear

Speaker - Subwoofer

Switch - Brake Deactivation

Switch - Stop Lamp
