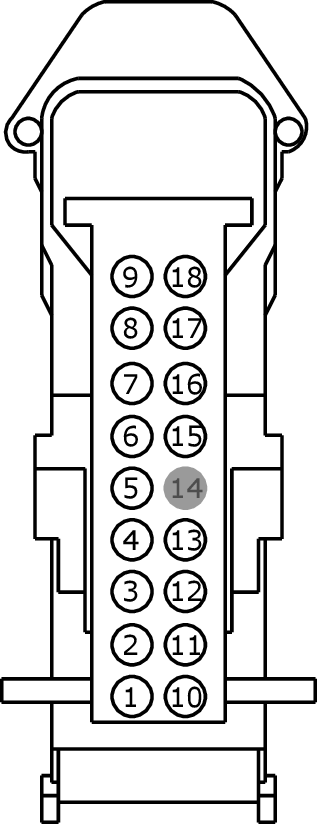

Connector End View (C3532) - GEAR SHIFT MODULE (GSM)
Connector:C3532
Description
GEAR SHIFT MODULE (GSM)
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
SBP12 (GN-RD) |
22 |
FUSE - 12 OR CIRCUIT BREAKER |
|
|
2 |
VDB26 (GY-BU) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW |
|
|
3 |
VDB25 (GN-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH |
|
|
4 |
CPL30 (BU-BN) |
22 |
SWITCH - LATCH DRIVER # UNLOCK |
|
|
5 |
CPK35 (YE) |
22 |
CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 2 + |
|
|
6 |
CPK36 (VT) |
22 |
CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP RUN LED |
|
|
7 |
CPK34 (BN-VT) |
22 |
CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 1 + |
|
|
8 |
CET83 (BU-OG) |
20 |
SWITCH - SHIFT-BY-WIRE OVERRIDE 2 (OVERRIDE_SW_2) |
|
|
9 |
GD383 (BK-WH) |
20 |
GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT |
|
|
10 |
VET77 (GY-YE) |
18 |
ACTUATOR - GEAR SHIFT # PWM OUT 2 (PWM2) |
|
|
11 |
VET76 (GN-OG) |
18 |
CTRL MOD. - GEAR SHIFT # PWM OUT 1 (PWM1) |
|
|
12 |
CET53 (BU-OG) |
22 |
CTRL MOD. - POWERTRAIN # BRAKE SHIFT INTERLOCK |
|
|
13 |
VLN04 (BU-WH) |
22 |
CTRL MOD. - IP/SWITCH ILLUMINATION |
|
|
14 |
* |
* |
Not Used |
|
|
15 |
CPL26 (GN-VT) |
22 |
SWITCH - LATCH DRIVER # AJAR |
|
|
16 |
CET82 (GN-VT) |
20 |
SWITCH - SHIFT-BY-WIRE OVERRIDE 1 (OVERRIDE_SW_1) |
|
|
17 |
VET78 (WH-VT) |
18 |
ACTUATOR - GEAR SHIFT # PWM OUT 3 (PWM3) |
|
|
18 |
GD383 (BK-WH) |
20 |
GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT |
|
Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1399 |
Service Part Number: EU2Z-14S411-LA Gauge: 20 Pin material: Tin (greased) Cavities: 18 Vehicle Uses Module - Gear Shift |
