Connector End View (C3265B) - FRONT SEAT CLIMATE CONTROL MODULE (SCME)

WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

Connector:C3265B

Description

FRONT SEAT CLIMATE CONTROL MODULE (SCME)

Color

Harness

14D230

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	VHS27 (WH-OG)	20	SENSOR - CUSHION TEMP. PASSENGER
3	RHS10 (BU-OG)	20	CTRL MOD. - HOT/COLD SEAT # PASSENGER SENSOR CUSHION TEMP.
4	VHS36 (YE-BU)	20	SENSOR - BACK TEMP. PASSENGER
5	RHS20 (GN-BU)	20	CTRL MOD. - HOT/COLD SEAT # PASSENGER SENSOR BACK TEMP.
6	*	*	Not Used
7	VHS26 (VT)	20	SENSOR - CUSHION TEMP. DRIVER
8	RHS05 (YE-VT)	20	CTRL MOD. - HOT/COLD SEAT # DRIVER SENSOR CUSHION TEMP.
9	CHS14 (GN)	20	CTRL MOD. - HOT/COLD SEAT # PASSENGER INDICATOR HIGH
10	CHS29 (WH-BU)	20	SWITCH - SEAT HEATER FRONT DRIVER SIDE

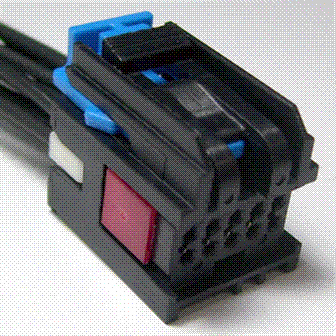

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1174

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-BLA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses

Module - Climate Control Seat
