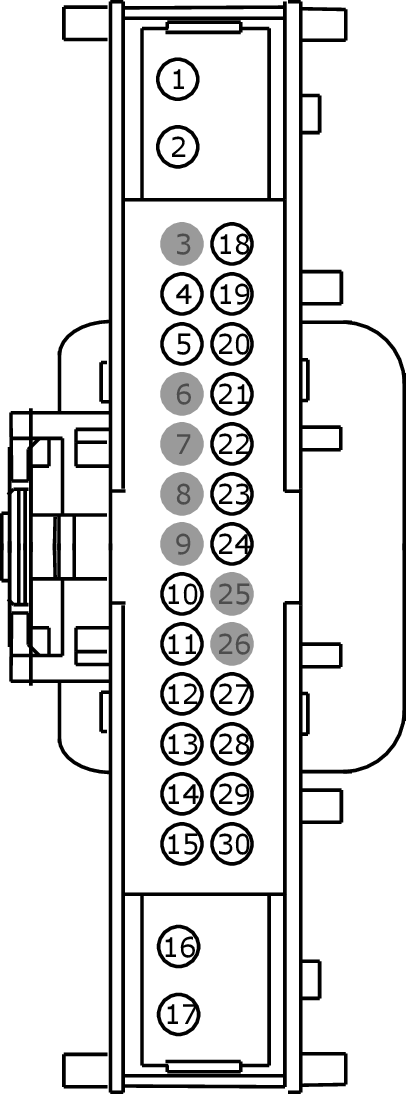

Connector End View (C2402B) - FRONT CONTROLS INTERFACE MODULE (FCIM)
Connector:C2402B
Description
FRONT CONTROLS INTERFACE MODULE (FCIM)
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
Not Available
Check for Terminal Part Numbers
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
SBB65 (RD) |
14 |
FUSE - 65 OR CIRCUIT BREAKER |
|
|
1 |
SBB65 (RD) |
16 |
FUSE - 65 OR CIRCUIT BREAKER |
|
|
2 |
SBB65 (RD) |
14 |
FUSE - 65 OR CIRCUIT BREAKER |
|
|
2 |
SBB65 (RD) |
16 |
FUSE - 65 OR CIRCUIT BREAKER |
|
|
3 |
* |
* |
Not Used |
|
|
4 |
VH410 (GY) |
26 |
SENSOR - DISCHARGE TEMP. # LEFT 2ND (LEFT FRONT FLOOR) |
|
|
5 |
VH409 (WH) |
26 |
SENSOR - DISCHARGE TEMP. # LEFT (LEFT FRONT PANEL) |
|
|
6 |
* |
* |
Not Used |
|
|
7 |
* |
* |
Not Used |
|
|
8 |
* |
* |
Not Used |
|
|
9 |
* |
* |
Not Used |
|
|
10 |
VH412 (YE) |
26 |
SENSOR - DISCHARGE TEMP. # RIGHT 2ND (RIGHT FRONT FLOOR) |
|
|
11 |
VH411 (VT) |
26 |
SENSOR - DISCHARGE TEMP. # RIGHT (RIGHT FRONT PANEL) |
|
|
12 |
CRD22 (WH-BN) |
22 |
CTRL MOD. - RELAY HEATER FRONT WINDOW RIGHT |
|
|
13 |
CH212 (BU-OG) |
26 |
CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COIL 1 / CLOSE (IF PLUS) |
|
|
14 |
CH213 (BN) |
26 |
CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COIL 2 / OPEN (IF PLUS) |
|
|
14 |
CH213 (BN-WH) |
26 |
CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COIL 2 / OPEN (IF PLUS) |
|
|
15 |
RHS10 (BU-OG) |
22 |
CTRL MOD. - HOT/COLD SEAT # PASSENGER SENSOR CUSHION TEMP. |
|
|
15 |
RHS10 (BU-OG) |
20 |
CTRL MOD. - HOT/COLD SEAT # PASSENGER SENSOR CUSHION TEMP. |
|
|
16 |
CHS02 (YE-BU) |
18 |
CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER + |
|
|
17 |
CHS07 (GY-BU) |
18 |
CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION HEATER + |
|
|
18 |
CH211 (YE) |
26 |
CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COMMON |
|
|
19 |
VH413 (WH) |
26 |
SENSOR - HUMIDITY |
|
|
20 |
CLS32 (BN-YE) |
26 |
SWITCH - HAZARD |
|
|
21 |
VH416 (VT) |
26 |
SENSOR - SUN LOAD # LEFT |
|
|
22 |
VH417 (YE) |
26 |
SENSOR - SUN LOAD # RIGHT |
|
|
23 |
CH253 (WH) |
26 |
CTRL MOD. - CLIMATE # START/STOP SWITCH DISABLE |
|
|
24 |
CE469 (BN) |
26 |
CTRL MOD. - POWERTRAIN # START/STOP ENABLE/DISABLE SWITCH INDICATOR |
|
|
25 |
* |
* |
Not Used |
|
|
26 |
* |
* |
Not Used |
|
|
27 |
VHA31 (GN-BN) |
22 |
SENSOR - REAR TEMP |
|
|
28 |
CRD21 (WH-BN) |
22 |
CTRL MOD. - RELAY HEATER FRONT WINDOW LEFT |
|
|
29 |
VH414 (GN) |
26 |
SENSOR - INCAR TEMP. |
|
|
30 |
RHS05 (YE-VT) |
22 |
CTRL MOD. - HOT/COLD SEAT # DRIVER SENSOR CUSHION TEMP. |
|
|
30 |
RHS05 (YE-VT) |
20 |
CTRL MOD. - HOT/COLD SEAT # DRIVER SENSOR CUSHION TEMP. |
