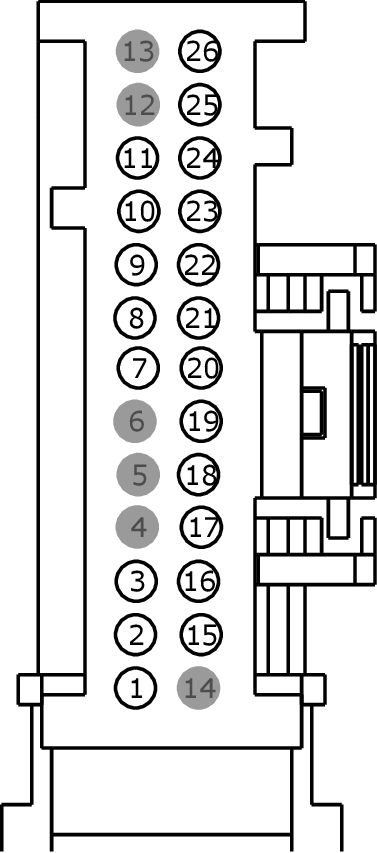

Connector End View (C2402A) - FRONT CONTROLS INTERFACE MODULE (FCIM)
Connector:C2402A
Description
FRONT CONTROLS INTERFACE MODULE (FCIM)
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
Not Available
Check for Terminal Part Numbers
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
GD216 (BK-GY) |
22 |
GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT |
|
|
1 |
GD216 (BK-VT) |
22 |
GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT |
|
|
1 |
GD216 (BK-GY) |
20 |
GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT |
|
|
2 |
RH111 (GY) |
22 |
CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF RETURN IN LOGICAL SCHEMATICS |
|
|
2 |
RH111 (GY) |
26 |
CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF RETURN IN LOGICAL SCHEMATICS |
|
|
3 |
LH111 (BN-WH) |
22 |
CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF IN LOGICAL SCHEMATICS |
|
|
3 |
LH111 (BN-WH) |
26 |
CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF IN LOGICAL SCHEMATICS |
|
|
4 |
* |
* |
Not Used |
|
|
5 |
* |
* |
Not Used |
|
|
6 |
* |
* |
Not Used |
|
|
7 |
CRD02 (BN-BU) |
22 |
CTRL MOD. - RELAY HEATER REAR WINDOW |
|
|
8 |
CH239 (BU) |
26 |
CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 2 / OPEN (IF PLUS) |
|
|
8 |
CH239 (BU-WH) |
26 |
CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 2 / OPEN (IF PLUS) |
|
|
9 |
CH238 (YE) |
26 |
CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 1 / CLOSE (IF PLUS) |
|
|
10 |
CH237 (VT-WH) |
26 |
CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COMMON |
|
|
11 |
CH123 (VT-GN) |
22 |
CTRL MOD. - BLOWER MOTOR RELAY |
|
|
12 |
* |
* |
Not Used |
|
|
13 |
* |
* |
Not Used |
|
|
14 |
* |
* |
Not Used |
|
|
15 |
VH451 (WH-GN) |
22 |
SENSOR - AIR QUALITY |
|
|
16 |
CH206 (YE-BU) |
26 |
CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COMMON |
|
|
17 |
VDB06 (GY-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH |
|
|
17 |
VDB06 (GY) |
26 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH |
|
|
18 |
VDB07 (VT-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW |
|
|
18 |
VDB07 (VT) |
26 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW |
|
|
19 |
VH406 (VT) |
26 |
SENSOR - A/C EVAPORATOR TEMPERATURE (ACET) |
|
|
20 |
CH202 (BU-WH) |
26 |
CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 1 / FLOOR (IF PLUS) |
|
|
21 |
CH203 (GN) |
26 |
CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 2 / PANEL (IF PLUS) |
|
|
22 |
CH201 (BN) |
26 |
CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COMMON |
|
|
23 |
VH101 (WH) |
26 |
CTRL MOD. - CLIMATE # BLOWER MOTOR CONTROL |
|
|
24 |
CH208 (GN-WH) |
26 |
CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 2 / OPEN (IF PLUS) |
|
|
25 |
CH207 (BU-OG) |
26 |
CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 1 / CLOSE (IF PLUS) |
|
|
26 |
SBP12 (GN-RD) |
22 |
FUSE - 12 OR CIRCUIT BREAKER |
|
|
26 |
SBP15 (GN-RD) |
22 |
FUSE - 15 OR CIRCUIT BREAKER |
