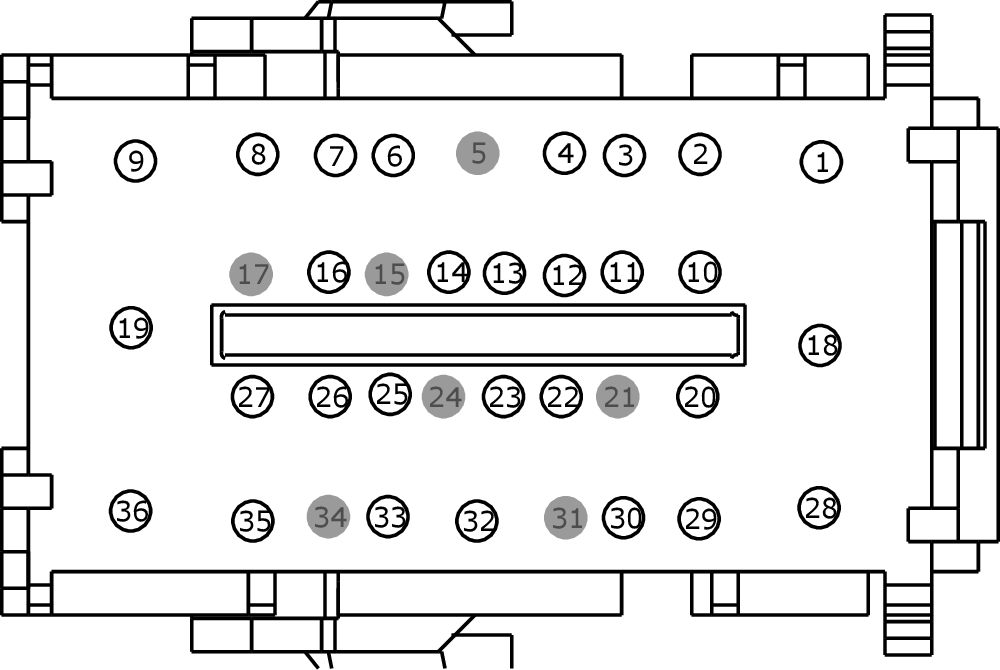

Connector End View (C2280F) - BODY CONTROL MODULE (BCM)
Connector:C2280F
Description
BODY CONTROL MODULE (BCM)
Color
Harness
14A005
Base Part #
part# N/A
Service Pigtail
Not Available
Check for Terminal Part Numbers
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
SBP29 (GY-RD) |
12 |
FUSE - 29 OR CIRCUIT BREAKER |
|
|
2 |
SBP28 (GN-RD) |
12 |
FUSE - 28 OR CIRCUIT BREAKER |
|
|
2 |
SBP28 (GN-OG) |
12 |
FUSE - 28 OR CIRCUIT BREAKER |
|
|
2 |
SBP28 (GN-RD) |
12 |
FUSE - 28 OR CIRCUIT BREAKER |
|
|
3 |
SBP03 (BU-RD) |
22 |
FUSE - 3 OR CIRCUIT BREAKER |
|
|
4 |
CBX07 (GN-RD) |
22 |
POWER - CTRL MOD. AMBIENT LIGHTING |
|
|
5 |
* |
* |
Not Used |
|
|
6 |
GD326 (BK-WH) |
18 |
GROUND - FLOOR CROSS MEMBER REAR LEFT |
|
|
7 |
GD326 (BK-WH) |
18 |
GROUND - FLOOR CROSS MEMBER REAR LEFT |
|
|
8 |
CBP36 (BU-BN) |
14 |
FUSE - 36 OR CIRCUIT BREAKER |
|
|
8 |
CBP36 (BU-BN) |
20 |
FUSE - 36 OR CIRCUIT BREAKER |
|
|
9 |
SBP30 (BN-RD) |
12 |
FUSE - 30 OR CIRCUIT BREAKER |
|
|
10 |
GD382 (BK-GY) |
14 |
GROUND - CROSS MEMBER MIDDLE DRIVER OR LEFT |
|
|
11 |
CLS28 (BU-WH) |
20 |
CTRL MOD. - RELAY REVERSE LAMP CONTROL (RLC) |
|
|
12 |
CLS05 (BU-GY) |
22 |
CTRL MOD. - PARK |
|
|
13 |
VLN33 (GY-VT) |
22 |
CTRL MOD. - INTERIOR/COURTESY LAMP DIMMING (THEATRE) |
|
|
14 |
CLN09 (YE-GN) |
20 |
CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR REAR DRIVER |
|
|
14 |
CLN09 (YE-GN) |
22 |
CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR REAR DRIVER |
|
|
15 |
* |
* |
Not Used |
|
|
16 |
SBP10 (YE-RD) |
22 |
FUSE - 10 OR CIRCUIT BREAKER |
|
|
16 |
SBP10 (YE-RD) |
20 |
FUSE - 10 OR CIRCUIT BREAKER |
|
|
17 |
* |
* |
Not Used |
|
|
18 |
SBP26 (YE-RD) |
12 |
FUSE - 26 OR CIRCUIT BREAKER |
|
|
18 |
SBP26 (YE-RD) |
10 |
FUSE - 26 OR CIRCUIT BREAKER |
|
|
19 |
SBP27 (BU-RD) |
12 |
FUSE - 27 OR CIRCUIT BREAKER |
|
|
19 |
SBP27 (BU-RD) |
10 |
FUSE - 27 OR CIRCUIT BREAKER |
|
|
20 |
SBP05 (GY-RD) |
16 |
FUSE - 5 OR CIRCUIT BREAKER |
|
|
20 |
SBP05 (GY-RD) |
12 |
FUSE - 5 OR CIRCUIT BREAKER |
|
|
20 |
SBP05 (GY-RD) |
16 |
FUSE - 5 OR CIRCUIT BREAKER |
|
|
21 |
* |
* |
Not Used |
|
|
22 |
SBP32 (VT-RD) |
20 |
FUSE - 32 OR CIRCUIT BREAKER |
|
|
23 |
CBP22 (GN-OG) |
4 |
FUSE - 22 OR CIRCUIT BREAKER |
|
|
24 |
* |
* |
Not Used |
|
|
25 |
CLS37 (WH-BU) |
20 |
CTRL MOD. - FOG LAMP REAR (RIGHT OR COMMON) |
|
|
26 |
CLN25 (VT) |
22 |
RELAY - PUDDLE LAMPS (KERB ILLUM.) |
|
|
27 |
CPL51 (BU-GN) |
14 |
CTRL MOD. - DOOR LOCK # DRIVER UNLOCK |
|
|
28 |
SBP25 (RD) |
12 |
FUSE - 25 OR CIRCUIT BREAKER |
|
|
29 |
SBP02 (YE-RD) |
20 |
FUSE - 2 OR CIRCUIT BREAKER |
|
|
30 |
CBP23 (BN-YE) |
22 |
FUSE - 23 OR CIRCUIT BREAKER |
|
|
30 |
CBP23 (BN-YE) |
20 |
FUSE - 23 OR CIRCUIT BREAKER |
|
|
31 |
* |
* |
Not Used |
|
|
32 |
CPL13 (BN-GN) |
14 |
CTRL MOD. - DOOR LOCK # ALL UNLOCK |
|
|
33 |
CPL10 (GN-WH) |
22 |
CTRL MOD. - DOOR LOCK # LIFTGATE/DECKLID RELEASE |
|
|
33 |
CPL10 (GN-WH) |
18 |
CTRL MOD. - DOOR LOCK # LIFTGATE/DECKLID RELEASE |
|
|
34 |
* |
* |
Not Used |
|
|
35 |
CPL11 (GY-BN) |
14 |
CTRL MOD. - DOOR LOCK # ALL LOCK |
|
|
36 |
CBP38 (GY-BU) |
18 |
FUSE - 38 OR CIRCUIT BREAKER |
