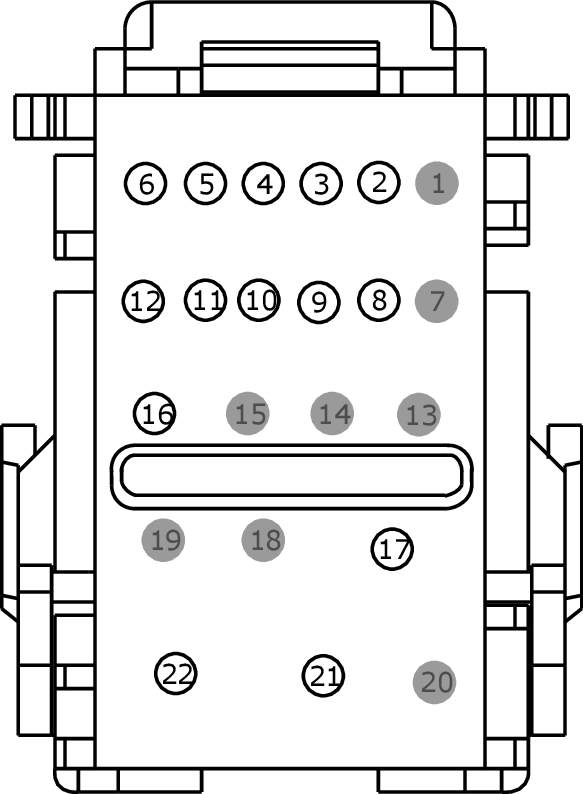

Connector End View (C2280B) - BODY CONTROL MODULE (BCM)
Connector:C2280B
Description
BODY CONTROL MODULE (BCM)
Color
Harness
12A581
Base Part #
part# N/A
Service Pigtail
Not Available
Check for Terminal Part Numbers
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
* |
* |
Not Used |
|
|
2 |
CLF05 (BU-GN) |
20 |
CTRL MOD. - BEAM LOW RIGHT |
|
|
3 |
CLS05 (BU-GY) |
20 |
CTRL MOD. - PARK |
|
|
4 |
CLF04 (BN-BU) |
20 |
CTRL MOD. - BEAM LOW LEFT |
|
|
5 |
CLF34 (YE-OG) |
20 |
CTRL MOD. - FOG LAMPS FRONT RIGHT OR COMMON |
|
|
6 |
CLF03 (VT-OG) |
20 |
CTRL MOD. - BEAM HIGH RIGHT |
|
|
7 |
* |
* |
Not Used |
|
|
8 |
CDC43 (YE-BU) |
18 |
RELAY - ELECTRICAL STEERING COLUMN LOCK |
|
|
9 |
VDB05 (WH) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
|
|
10 |
VDB04 (WH-BU) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
|
|
11 |
CLF02 (GY-BN) |
20 |
CTRL MOD. - BEAM HIGH LEFT |
|
|
12 |
CLF29 (BN) |
20 |
CTRL MOD. - FOG LAMPS FRONT (LEFT) |
|
|
13 |
* |
* |
Not Used |
|
|
14 |
* |
* |
Not Used |
|
|
15 |
* |
* |
Not Used |
|
|
16 |
CLN09 (YE-GN) |
20 |
CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR REAR DRIVER |
|
|
17 |
SB101 (RD) |
10 |
FUSE - 1 OR CIRCUIT BREAKER |
|
|
17 |
SBF03 (BU-RD) |
10 |
FUSE - 3 |
|
|
18 |
* |
* |
Not Used |
|
|
19 |
* |
* |
Not Used |
|
|
20 |
* |
* |
Not Used |
|
|
21 |
SBB67 (BU-RD) |
10 |
FUSE - 67 OR CIRCUIT BREAKER |
|
|
22 |
SBB62 (BN-RD) |
10 |
FUSE - 62 OR CIRCUIT BREAKER |
