Connector End View (C2004) - BLOWER MOTOR
WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Connector:C2004
Description
BLOWER MOTOR
Color
Harness
18B518
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
RH301 (GY-VT) |
10 |
CTRL MOD. - BLOWER VARIABLE SPEED # BLOWER MOTOR - |
|
|
2 |
VH301 (YE-BU) |
10 |
CTRL MOD. - BLOWER VARIABLE SPEED # BLOWER MOTOR + |
|
Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1134 |

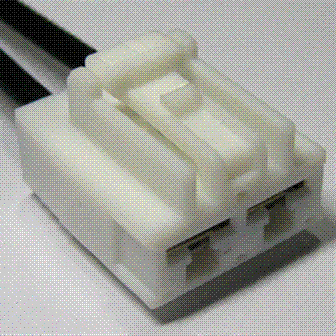

Service Part Number: BU2Z-14S411-HA Gauge:Pin material: Tin Cavities: 2 Vehicle Uses Motor - Heater/AC Blower (Auxiliary) |
