Connector End View (C1696) - COLD START FUEL PUMP
WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Connector:C1696
Description
COLD START FUEL PUMP
Color
Harness
9W340
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
GD123 (BK-GY) |
20 |
GROUND - FENDER FRONT RIGHT |
|
|
2 |
CE618 (BN-VT) |
20 |
E100 RELAY (CSM) |
|

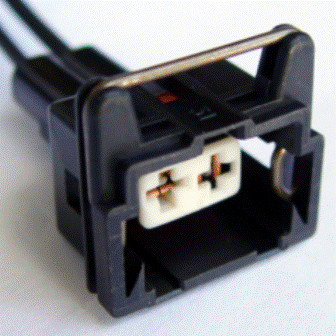

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-451 |
Service Part Number: 3U2Z-14S411-MTA Gauge: 16 Pin material: Tin Cavities: 2 Vehicle Uses Motor - Windshield Washer Fluid Pump Switch - Brake Pedal Position Switch - Brake Pressure Switch - Speed Control Deactivation Switch - Stop Lamp |
