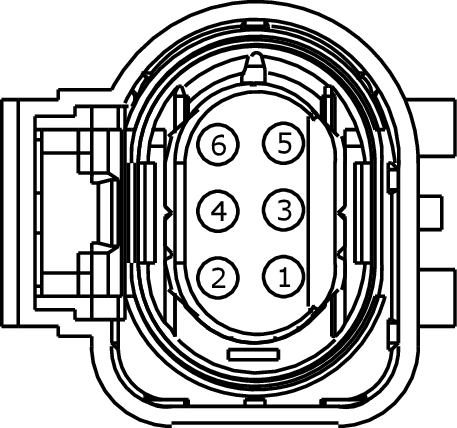

Connector End View (C1675) - ELECTRONIC THROTTLE CONTROL (ETC)

WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

Connector:C1675

Description

ELECTRONIC THROTTLE CONTROL (ETC)

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VE819 (GN-VT)	18	SENSOR - THROTTLE POSITION # POSITIVE SLOPE (TP2)
2	RE134 (BU-OG)	18	CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN)
3	CE426 (BU-GN)	18	CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-)
4	VE818 (BN)	18	SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1)
5	CE412 (YE-VT)	18	CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+)
6	LE134 (YE)	18	CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF)

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1355

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-AFA

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Control - Electronic Throttle

Sensor - O2 (HEGO/ EGO)
