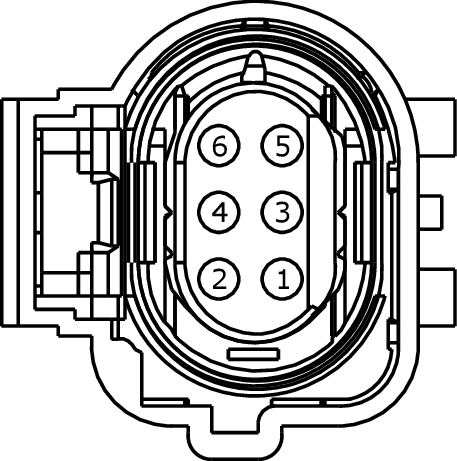

Connector End View (C1368) - ELECTRONIC THROTTLE CONTROL (ETC)

WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

Connector:C1368

Description

ELECTRONIC THROTTLE CONTROL (ETC)

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	LE134 (YE)	20	CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF)
2	VE818 (BN)	20	SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1)
3	RE134 (BU-OG)	20	CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN)
4	CE426 (BU-GN)	18	CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-)
5	VE819 (GN-VT)	20	SENSOR - THROTTLE POSITION # POSITIVE SLOPE (TP2)
6	CE412 (YE-VT)	18	CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+)

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1389

Courtesy of FORD MOTOR COMPANY

Service Part Number:

EU2Z-14S411-FA

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Control - Electronic Throttle

Sensor - O2 (HEGO/ EGO)
