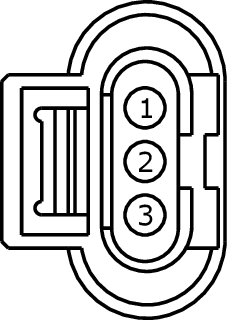

Connector End View (C1217) - CHARGE AIR COOLER (CAC) PUMP
WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Connector:C1217
Description
CHARGE AIR COOLER (CAC) PUMP
Color
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
GD108 (BK-VT) |
16 |
GROUND - CHASSIS / BATTERY |
|
|
2 |
CBK03 (GY) |
20 |
FUSE - 12 OR CIRCUIT BREAKER |
|
|
3 |
CE258 (YE-GN) |
20 |
CTRL MOD. - POWERTRAIN # CHARGE AIR COOLER (CAC) |
|
Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1301 |
Service Part Number: CU2Z-14S411-ANA Gauge: 18 Pin material: Silver Cavities: 3 Vehicle Uses Sensor - Front Park Aid (FPA) |
